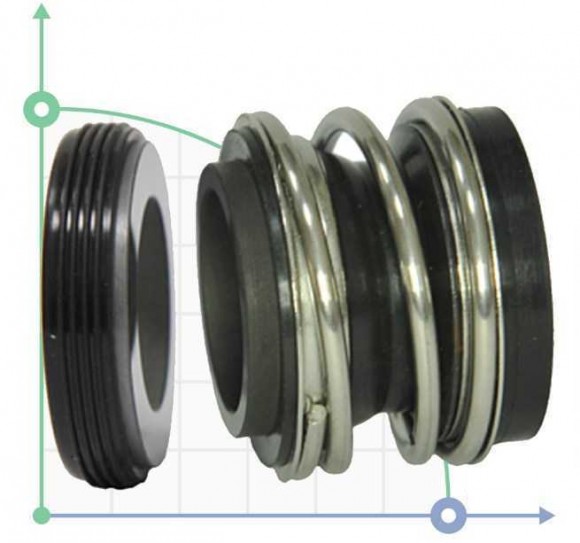

Mechanical seal R-MG1S20 32, CAR/CER, EPDM, 304, G50
$-3.08
Documentation
Download instructions, catalog for Mechanical seal R-MG1S20 32, CAR/CER, EPDM, 304, G50
Overview
Single End seal R-MG1S20, with an elastomeric bellows, unbalanced, with a central spring, independent of the direction of rotation of the shaft.
It is used at temperatures ranging from -20 to + 140°C, pressures up to 1.6 MPa and the rotation speed to 10 m/sec.
The size and name for MG1, but with elongated cylindrical portion of the bellows for mounting the length of the counter in conjunction with the G50.
Analogue mechanical seals: Burgmann MG1S20.
Mechanical seal for Wilo pump, K, KM, X, AH, AHP, AH, Calpeda, DAB, Ebara, Grundfos, pump KSB, Allweiler, SALMSON, ACD Cryo, Flygt, IMP Pumps, LOWARA, PENTAX, Foras, Fristam, pump SPERONI, ZENIT, Inoxpa, JL, Johnson pump, KOLMEKS, Pedrollo, SAER, Vulcan, WQ, WQK, pump Tuchenhagen, ALFA LAVAL, Donjoy, Mission Magnum.
Characteristics
| Producer | BTS Engineering |
| Shaft diameter | 32 |
| Rubber type | EPDM |
| Stationary and rotating face | CAR/CER |
| Material of metal part | 304 |
| Type of conta-ring | G50 |
| Pressure | 1,6 mPa |
| Rotation velocity | 10 m/s |
| Operating temperature | -20°C + 140°C |
| Seal type | R-MG1S20 |
| Application | Iron Pump, SAER, WILO, CMF |
| Analogue for | AESSEAL BP02, AESSEAL BP02U, Burgmann MG1S20, Flowserve 150, LIDERING LRB17E, Sterling 152, Vulcan 1520 |
| Gross weight, kg | 0.25 |
| Length of transport packing, cm | 8 |
| Width of transport packing, cm | 8 |
| Height of transport packing, cm | 10 |
