DN125 Electromagnetic flowmeter LDG PN16 (water) 0...150 m3/h, 4-20mA+RS485, AISI 316 stainless steel, PTFE lined
Documentation
Download instructions, catalog for DN125 Electromagnetic flowmeter LDG PN16 (water) 0...150 m3/h, 4-20mA+RS485, AISI 316 stainless steel, PTFE lined
Overview
The measuring principle of electromagnetic flow meter is based on Faraday's law of electromagnetic induction. The sensor is mainly composed of a measuring tube with an insulated lining, a pair of electrodes installed by penetrating the wall of the measuring tube, a pair of coils and an iron core to generate a working magnetic field. When a conductive fluid flows through the sensor's measuring tube, a voltage signal directly proportional to the average fluid flow rate will be induced at the electrodes. The signal is amplified and processed by the transmitter to realise various display functions.

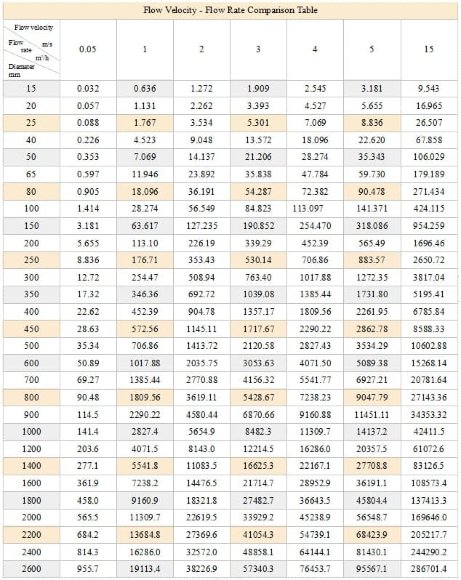

Characteristics
| Flow range | 0...150 m3/h |
| Control signal, mA | 4-20 |
| Type of flow meter | electromagnetic |
| Voltage, V | 24 |
| Connection diameter, DN | 125 |
| Accuracy class (measurement error), % | 0,5 |
| Producer | BTS Engineering |
| Explosion protection | No |
| Temperature range | -20...+60°С |
| Nom.pressure, Mpa | 1 |
| Connection type | flanged |
| Max.temperature, C | 60 |
| Housing material | AISI 316 stainless steel |
| Electrode material | AISI 316L |
| Country of Origin | China |
