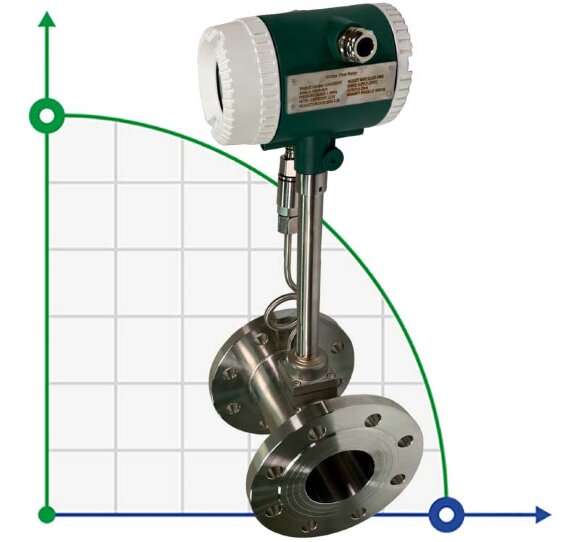

DN80 Stainless steel AISI 316 vortex flow meter KLUGB/PN16 flange, for steam 175-2700 kg/h (density 2.7 kg/m3) 1.6 MPa, 150°C, 4-20mA+RS485
Documentation
Download instructions, catalog for DN80 Stainless steel AISI 316 vortex flow meter KLUGB/PN16 flange, for steam 175-2700 kg/h (density 2.7 kg/m3) 1.6 MPa, 150°C, 4-20mA+RS485
Overview
On-screen display of transient flow + accumulated flow + medium temperature + medium pressure; With temperature and pressure compensation.
Vortex flow meter is used to measure the flow rate of gases or liquids in complete pipelines. The measurement principle is based on the development of a vortex Karman street following a body embedded in the pipeline.
The vortices are periodically discharged first on one side and then on the other side of the flow body (body with vortices), which is installed perpendicular to the pipe axis. The vortex flow creates a so-called "vortex Karman street" with a variable pressure, the frequency of which is proportional to the flow rate.
Characteristics

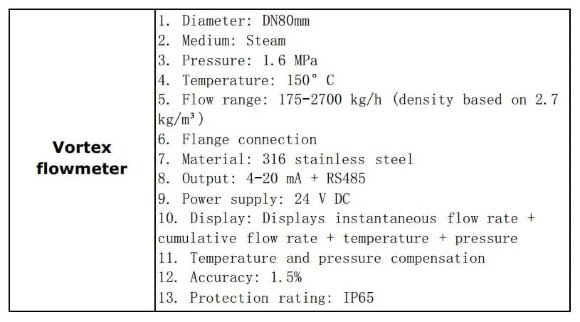

| Flow range | 175-2700 kg/h |
| Control signal, mA | 4-20mA+RS485 |
| Display | displays instantaneous flow rate + cumulative flow rate + temperature + pressure |
| Type of flow meter | vortex |
| Additionally | temperature and pressure compensation |
| Voltage, V | 24 |
| Connection diameter, DN | 80 |
| Accuracy class (measurement error), % | 1,5 |
| Producer | BTS Engineering |
| Protection | IP65 |
| Connection type | flanged |
| Max.temperature, C | 150 |
| Housing material | AISI 316 stainless steel |
| Country of Origin | China |
| Working Environment | пара |
