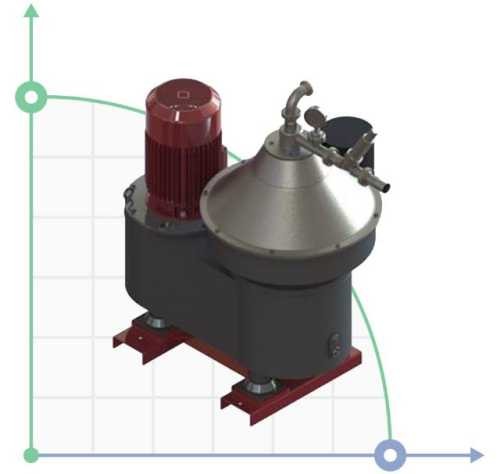

IBA 5431 industrial separator for processing vegetable oils
Documentation
Download instructions, catalog for IBA 5431 industrial separator for processing vegetable oils
Overview
The HAUS I Series separators are specially designed for industrial applications. Separators of the HAUS I series; offer high separation efficiency due to high centrifugal force. They are specially manufactured for the production or processing of vegetable oils such as coconut oil, palm oil, waste oils, oil polish and animal oils such as fish oil. Industrial separators of the I series serve in a variety of sectors around the world.
The separators of the HAUS I series are resistant to corrosion thanks to specially selected duplex stainless materials. The seals they have are designed for high temperature applications. Details of high speed rotating drum group; resistant to abrasion thanks to replaceable drum protectors and piston protectors.
Separators of the HAUS I series are designed to achieve high product quality and continuous operation. With the latest innovations in separation technology, it saves energy and time thanks to its low energy consumption and fast discharge systems.
Explosion-proof separators of the HAUS I series are designed for safe operation in explosive environments with flammable and explosive products and are designed with an inert gas supply with ATEX certified equipment and sensors.
Characteristics
Producer | HAUS |
Power capacity, kW | 22 |
Rate of turn, rpm | 6 800 |
Power supply | 3х380 V, 50 Hz |
Max.flow rate, m3/h | 22 |
Dimensions, mm | 1392x800x1620 |
Country of Origin | Turkey |
Application | animal oils, fish fat, polishing oils, coconut oil, processing of vegetable oils, waste oils, palm oil |
Analogue for | Alfa Laval, BROADBENT, CBB Decanter, Flottweg, GEA, PHOENIX, POLAT Makina, ОГШ |
Logistics data: |
