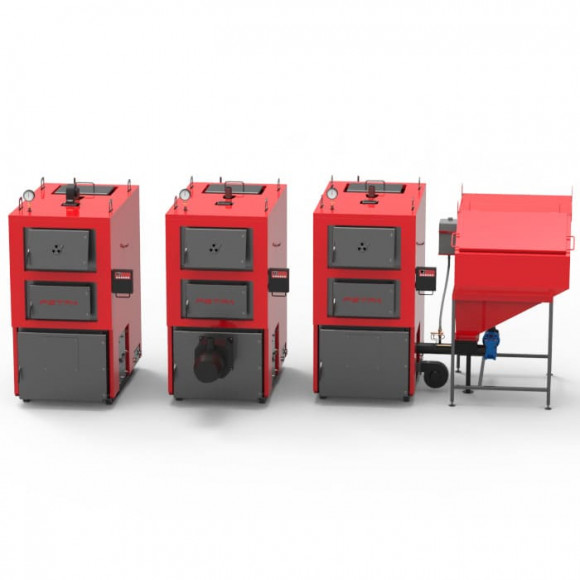

Retra-4M Combi boiler, 80 kW with flare burner
Overview

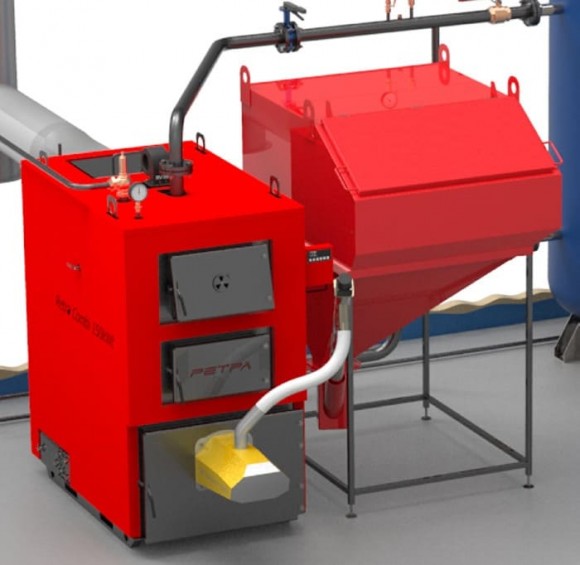

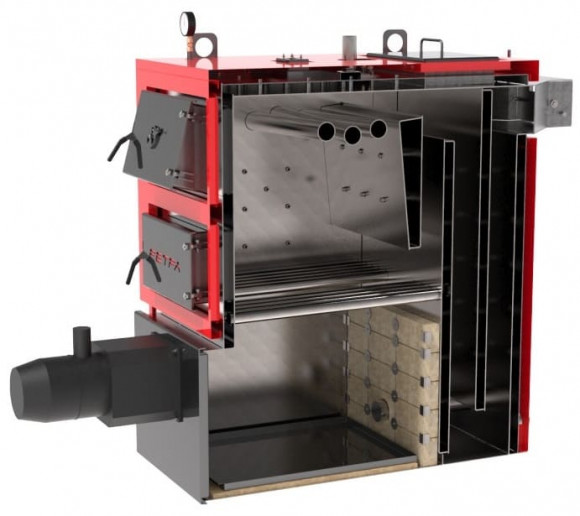

A flare burner is installed in the lower hatch of the boiler, into which fuel is mechanically supplied from the hopper. Fuel combustion takes place in the lower chamber. This automatic loading mode is designed for burning pellets (including agro-pellets, in a lined burner). The pellet burner torch is directed at the rear wall of the boiler furnace with lining. The process of automatic ignition, burning and cleaning of the burner is controlled by a multifunctional control unit. Mechanized fuel supply, Hopper and automation are supplied complete with a flare burner.
Boilers are designed to work in central water heating systems with forced (closed pressure heating system) or natural (open heating system) circulation of heat carrier for heat and hot water supply of residential buildings, dachas, industrial and warehouse premises, retail facilities, social and administrative buildings.
The Boilers are designed to operate in systems with an operating pressure of no more than 0.2 MPA (on request - 0.6 MPA) and a water temperature at the boiler outlet of no more than +95 °C.
Characteristics
Loading hatch neck size, mm (WxH) | 430х310 |
Connection dimensions to the heating system | 2" |
Heat exchanger area, m2 | 6,9 |
Power consumption, W (220 V, 50 Hz), Max | 800 |
Production period, days | ≥ 90 |
Overall dimensions of the boiler, mm (LxWxH) | 1780х930х1670 |
Chimney outlet, mm | 250 |
Complete set | boiler RETRA-4M PLUS: torch burner OXI EVO (EVO-C), automation and flexible auger, bunker torch BF (pellets, agropellets) |
Overall dimensions of the boiler with Hopper Assembly, mm (LxWxH) | 1780х1700х1750 |
Vacuum behind the boiler, Pa, Max | 40 |
Temperature of combustion products, Max, °C | 110-160 |
Fuel type | pellets, agropellets |
Working pressure of the heat carrier, MPA, min / max | 0,1/0,3 |
Water temperature at the boiler inlet, not less than, °C | 55 |
Water shirt volume, L | 242 |
Inner wall thickness of the heat exchanger, mm | 5 |
Upper combustion chamber size, mm (LxWxH | 780х670х600 |
Boiler weight (without water), kg | 985 |
Boiler outlet water temperature, Max, °C | 95 |
Hopper capacity, M3 | 0,8 |
Connecting size of the safety valve | 1" |
Furnace volume, L | 310 |
Chimney pipe diameter, mm/height, m, not less | 250/8 |
Producer | РЕТРА |
Country of Origin | Ukraine |
Power capacity, kW | 80 |
Serial number of the boiler | 4М Combi |
Heating area, m2 (at a height of up to 3.5 m) | 800 |
