Dosing pump PDE HC100 06-02 230V PP-GL-VT
Also buy with this product
1042539
Pre-order only
Overview
AQUA HC100 dosing pumps are perfectly suitable for water treatment, swimming pools, water purification and other industrial processes.
Dosing pumps are provided as standard:
- Ball glass check valves and Viton seals.
- The standard voltage is 230V 50Hz.
- The housing of the solenoid drive of the metering pump is made of glass-fiber reinforced polypropylene, and the metering head is made of polypropylene with talc.
- The membrane is made of Teflon (PTFE).
- No, the input for connecting the level sensor.

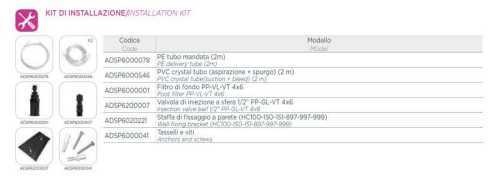

All solenoid metering pumps have the following set of hoses and fittings as standard:
- injecting valve,
- reagent intake filter,
- supply hose - 2 m (RE),
- intake and overflow hose 2 pcs. 1.5 m each (PVC),
- screws and connectors.
Characteristics
| Producer | AQUA |
| Material | PP |
| Power supply | 1х220 V, 50 Hz |
| Control | Manual |
| Power capacity, Wt | 15 |
| Dosage mode: Continually ON-OFF | Yes |
| Input foe sensor | No |
| Model | PI |
| Dosage mode: proportional PROP | No |
| Input for sensor CD | No |
| Product regulation 0-100% | Yes |
| Input foe temperature sensor | No |
| Pump head type | PP 3/8" |
| Input for level sensor reagent | No |
| Input mA | No |
| Flow rate, l/h | 6 |
| Input 4-20 mA | No |
| Output service relay | No |
| Pulse input(From Flowmetwer) | No |
| Support for flow sensor | No |
| Hose standard size | 4x6 |
| Input foe sensor PH | No |
| Diaphragm stroke per min. | 105 |
| Pressure, bar | 2 |
| Input for sensor RX | No |
| Pump body material | Polypropylene |
| Serial number of the pump | HC100 |
| Country of Origin | Italy |
| PumpType | dosing solenoid |
| Drive Type | electric |
| Application | algaecide, hypochlorite, caustic, acid, coagulant, of hydrochloric acid, alkalis |
| Weight, kg | 2,9 |
