ProducerBTS Engineering
Pump capacity, cu.m/hour6
Feed height, m12
MaterialAL
Input pipe diameter41
All specifications
Ukraine: Pre-order onlyPoland: Pre-order onlyGermany: Pre-order onlyItaly: Pre-order only
Vendor code: 1000015034
Specify the price and terms of delivery with the manager

Estimated delivery date: 09.07.2025

$758.46netto
-+Buy

Documentation

Download instructions, catalog for Drum pump BTS-HD-EX2-V+AL-700mm

Overview

BTS Engineering
Drum pumps designated for transferring of various liquids from the cans, tanks and IBC containers. Drum pumps are made of different materials, e.g. stainless steel, Aluminum, PVC (poly vinyl chloride), Polypropylene and others. The delivery of acids, alkalis and reagents in drums and IBC (intermediate bulk containers) became the common practice. Specified tare oftentimes is for turn back and it means that the tare must be tipped out quickly and carefully and the returned to sender. As the containers with down discharge forbidden in many countries because of the liquid restriction danger, the only possibility of pumping the liquid became the using of housing on lid. The best equipment for this work is drum pumps. Drum pumps for chemically active liquids: sodium hydroxide, acetic acid, nitric acid, hydrofluoric acid and muriatic acid and others. Drum pumps transfer food supplements, feed products, molasses, deckers, atomizers, liquid products – concentrates and ingredients. In industry: pumping and loading of reagents and liquids from plastic tare, IBCs and drums. Drum pumps are widely used for transferring of petrochemicals, dissolvents, hardening agents and other components.

Characteristics

ProducerBTS Engineering
Pump capacity, cu.m/hour6
Feed height, m12
MaterialAL
Input pipe diameter41
Output pipe diameter25
Rate of turn, rpm12 000
Power supply1х220 V, 50 Hz

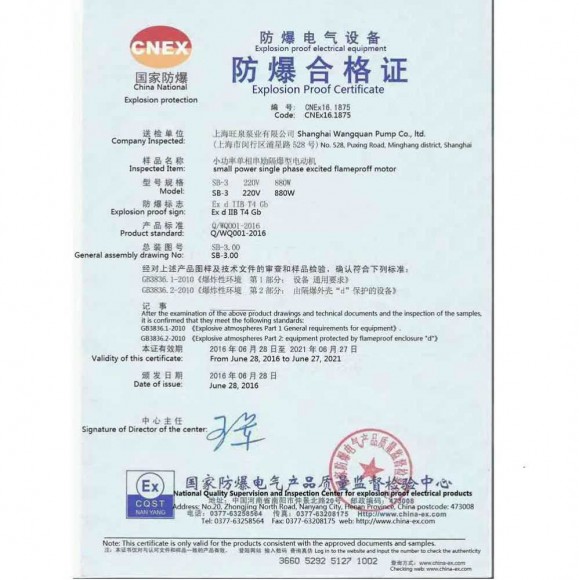

Explosion protectionYes
Power capacity, Wt880
ModelBTS
Max.temperature, C100
Length, mm700
Max.viscosity, cPs50
Flow rate, l/min100
Max. head, m12
Height, mm700
Material of flow channelAL
Shaft materialAISI 304 stainless steel
Country of OriginChina
PumpTypedrum
Drive Typeelectric
Type of configurationwith engine
Availability of spare partsYes
Warranty, months12
ApplicationCIP-washing, nitric acid, flavorings, barrel, cubic containers, acid, oils, petroleum products, hardeners, treacle, pigments, food additives, food, hydrofluoric acid, solvents, thickeners, of hydrochloric acid, fuel, acetic acid, enzymes, chemistry, chemically active liquids, alkalis
Analogue forJESSBERGER, FLUIMAC, DAYTON, Debem, Lutz

Categories:Drum pumps Ex (explosion-proof electric motor)Pumps for hexanePumps for pumping alcohol ЕХ
