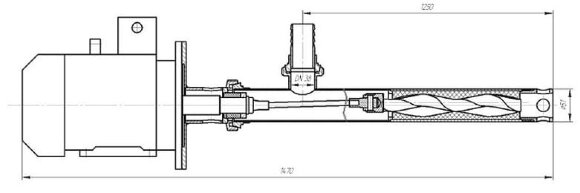

Barrel screw pump for thick substances (jam, fat, tomato paste) NVВ2001-0304L 1.1 kW, 50 l/min, 4 bar, 1200 mm
Also buy with this product
1042539
Pre-order only
Overview
Barrel screw pump (drum pump) is used for pumping acids and alkalis, neutral, aggressive liquids, as well as high-viscosity liquids. Designed for pumping liquids from Eurocubes and containers. The pump is made of food-grade stainless steel. Length of the working part 1200 mm Power 1.1 kW Flow 50 l/min (characteristics given for water) Pressure 4 bar Material of the working (immersed) part - 12X18N10T (AISI 304)
Characteristics
| Producer | BTS Engineering |
| Pump capacity, m3/h | 2 |
| Feed height, m | 40 |
| Power capacity, kW | 1,1 |
| Rate of turn, rpm | 1 000 |
| Protection | IP54 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 3 |
| Max.temperature, C | 100 |
| Length, mm | 1 200 |
| Suction capacity (NPSH), m | 1,2 |
| Nom.flow rate, m3/h | 2 |
| Seal | Mechanical Seal |
| Max. head, m | 40 |
| Height, mm | 1 200 |
| Pressure, bar | 4 |
| Housing material | AISI 304 stainless steel |
| PumpType | drum |
| Drive Type | electric |
| Installation Type | vertical |
| Weight, kg | 27 |
