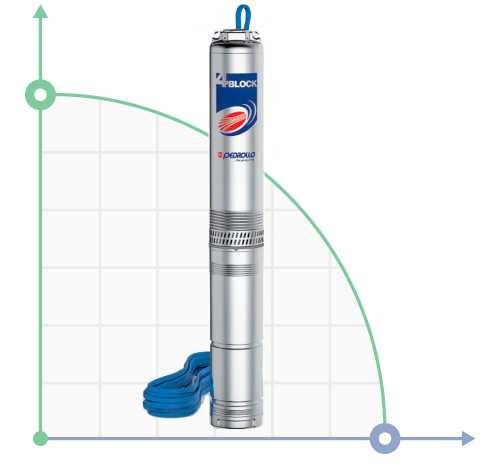

Borehole pump 4BLOCKm 2/20
Also buy with this product
1042539
Pre-order only
Overview
Pumps of this series are oriented for repumping from burrow and well shaft of pure water with a content of sand not more than 150 g / m3. High production and reliability let successfully use these pumps in household water supply as a component of self-operative lift station, for irrigation etc.
- Liquid temperature up to +35˚C
- The maximum content of sand is not more than 150 g/m3
- Submergence to 60 m below water level
- Possible vertical and horizontal installation
- Activation per hour: 20 with equal-interval
- Continuous of operation SI
Characteristics
| Diameter of pump | 4" (100 mm) |
| Producer | Pedrollo |
| Pump capacity, m3/h | 2.4 |
| Feed height, m | 91 |
| Power capacity, kW | 1,1 |
| Output pipe diameter | G 1 1/4" |
| Power supply | 1х220 V, 50 Hz |
| Nom.flow rate, m3/h | 2.4 |
| Nom.head, m | 91 |
| Housing material | AISI 304 stainless steel |
| Serial number of the pump | 4BLOCK |
| Country of Origin | Italy |
| PumpType | borehole |
| Drive Type | electric |
| Application | wells |
| Weight, kg | 17,8 |
