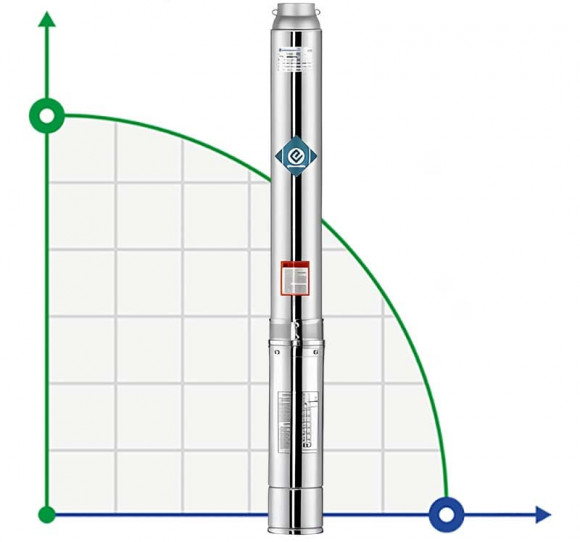

Borehole Irrigation Pump 4SSM4/14, Outlet: 1 1/4 inch, 1.1kW, 220V
Also buy with this product
Documentation
Download instructions, catalog for Borehole Irrigation Pump 4SSM4/14, Outlet: 1 1/4 inch, 1.1kW, 220V
Overview
The EDWIN 4SS series pump is used for water supply from wells or reservoirs, for domestic, civil and industrial applications, for use in gardens and for irrigation. Operating conditions: maximum liquid temperature up to +35°C, maximum sand content: 0.25%, minimum well diameter: 4".
Characteristics
| Diameter of pump | 4" (100 mm) |
| Producer | EDWIN |
| Pump capacity, cu.m/hour | 4 |
| Feed height, m | 105 |
| Power capacity, kW | 1,1 |
| Material | AISI 304 stainless steel |
| Output pipe diameter | 1 1/4" |
| Rate of turn, rpm | 2 850 |
| Power supply | 1х220 V, 50 Hz |
| Max.medium temperature, Celsius degree | 35 |
| Nom.flow rate, m3/h | 4 |
| Max. head, m | 105 |
| Housing material | AISI 304 stainless steel |
| Impeller material | POM |
| Shaft material | AISI 304 stainless steel |
| Serial number of the pump | 4SS |
| Country of Origin | China |
| PumpType | borehole |
| Drive Type | electric |
| Weight, kg | 10 |
| Gross weight, kg | 10.6 |
