Deep Well Pump 8SP77-09, 30kW, 380V (replacement of ECV 8-63-120)
Also buy with this product
Documentation
Download instructions, catalog for Deep Well Pump 8SP77-09, 30kW, 380V (replacement of ECV 8-63-120)
Overview
The deep well pump is used for water supply from wells or reservoirs, for domestic, civil and industrial applications, for use in gardens and for irrigation.
Characteristics
| Diameter of pump | 8" (200 mm) |
| Producer | Свердловинні насоси |
| Pump capacity, cu.m/hour | 96 |
| Feed height, m | 182 |
| Power capacity, kW | 30 |
| Material | AISI 304 stainless steel |
| Output pipe diameter | 4" |
| Rate of turn, rpm | 2 850 |
| Power supply | 3х380 V, 50 Hz |
| Max.flow rate, m3/h | 96 |
| Cabel length,m | 2 |
| Flow rate, l/min | 1600 |
| Max. head, m | 182 |
| Housing material | AISI 304 stainless steel |
| Serial number of the pump | 8SP |
| Country of Origin | China |
| PumpType | borehole |
| Drive Type | electric |
| Gross weight, kg | 157 |
| Length of transport packing, cm | 137 |
| Width of transport packing, cm | 41 |
| Height of transport packing, cm | 20 |

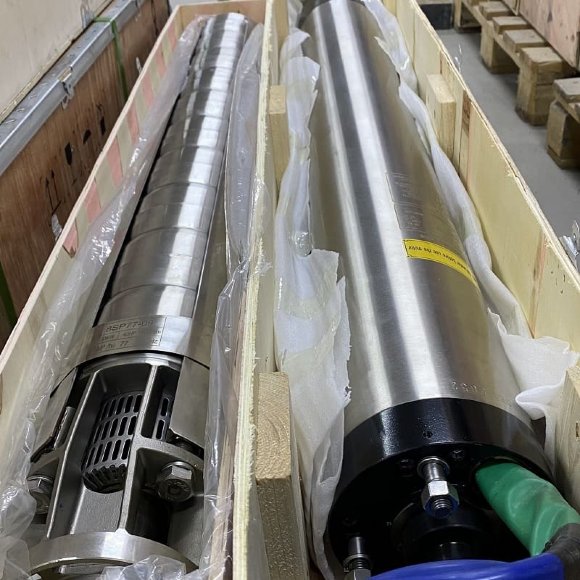

| Packaging | delivered by two parts, packaging of the pump part: 131x19x19 cm, 43 kg; engine: 137x22x20cm, 114 kg |
