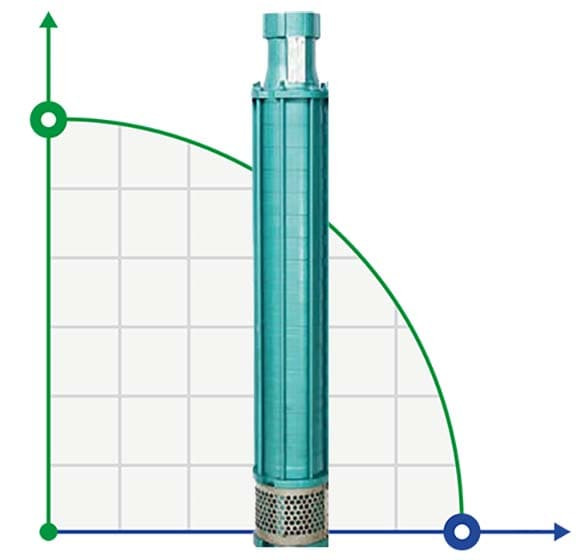

Borehole pump YSP CI 6003/12, 5.5 kW, 380V
Also buy with this product
Overview
Analog of ECV 6-10-110. YSP CI borehole pumps can be used in difficult conditions where high reliability of equipment is required, namely: in high-pressure water supply systems; in irrigation and fire extinguishing systems; at water treatment plants; in filtration and desalination of seawater; in industrial cooling; in the mining industry.
Characteristics
| Diameter of pump | 6" (150 mm) |
| Producer | Yildizsu |
| Pump capacity, cu.m/hour | 16 |
| Feed height, m | 131 |
| Power capacity, kW | 5,5 |
| Output pipe diameter | 2" |
| Rate of turn, rpm | 2 900 |
| Protection | IP 68 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 16 |
| Diameter, mm | 143 |
| Max.temperature, C | 30 |
| Length, mm | 752 |
| Nom.flow rate, m3/h | 12 |
| Nom.head, m | 100 |
| Max. head, m | 131 |
| Housing material | Сast iron |
| Serial number of the pump | YSP CI |
| Country of Origin | Turkey |
| PumpType | borehole |
| Drive Type | electric |
| Installation Type | vertical |
| Weight, kg | 21,1 |
