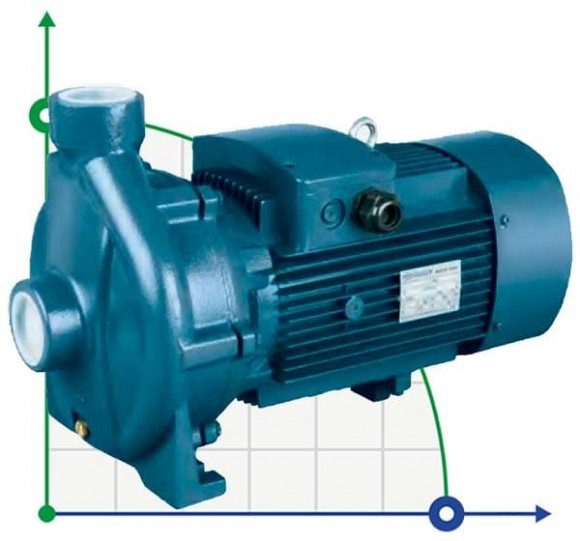

BC 6H (30/19,5), 3kW, 2880 thread port centrifugal pump
Also buy with this product
Documentation
Download instructions, catalog for BC 6H (30/19,5), 3kW, 2880 thread port centrifugal pump
Overview
The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required. Double brass impeller pump in thread port design. YE3 high efficient motor, with protection IP55 class F. Shaft in stainless steel AISI 304. Quality NSK bearing, wear resistance mechanical seal. Used for any high pressure requirement.
Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 30 |
| Feed height, m | 19.5 |
| Power capacity, kW | 3 |
| Material | cast iron |
| Input pipe diameter | 80 |
| Output pipe diameter | 80 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.temperature, C | 120 |
| Volume, m3 | 0,041 |
| Nom.flow rate, m3/h | 30 |
| Dimensions, mm | 435х240х317 |
| Nom.head, m | 19.5 |
| Seal | Mechanical Seal, SiC/Carbon/SS304 |
| Pressure, bar | 16 |
| Impeller material | brass |
| Serial number of the pump | BC |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Weight, kg | 35 |
| Height of transport volume, cbm | 0,041 |
