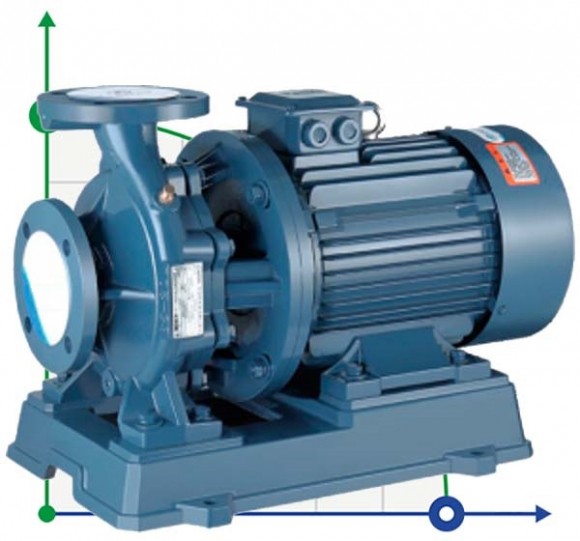

BGW 100-350 (100/150), 90kW, 2880 centrifugal horizontal pump
Also buy with this product
Documentation
Download instructions, catalog for BGW 100-350 (100/150), 90kW, 2880 centrifugal horizontal pump
Overview
BGW series pumps are used for: - fire extinguishing systems; - municipal water supply; - technical water supply systems; - air conditioning and heating systems; - liquid cooling systems; - washing, filtration and cleaning systems; - use in swimming pools; - fountain installations; - watering and irrigation of fields.
Characteristics
| Producer | BTS Engineering |
| Pump capacity, m3/h | 100 |
| Feed height, m | 150 |
| Power capacity, kW | 90 |
| Material | cast iron |
| Input pipe diameter | 100 |
| Output pipe diameter | 100 |
| Rate of turn, rpm | 2 880 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.temperature, C | 120 |
| Nom.flow rate, m3/h | 100 |
| Dimensions, mm | 680x630x1310 |
| Nom.head, m | 150 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Material of flow channel | cast iron |
| Serial number of the pump | BGW |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | water supply, cooling tower, for systems of water supply, irrigation, extinguishing, irrigation systems |
| Weight, kg | 950 |
