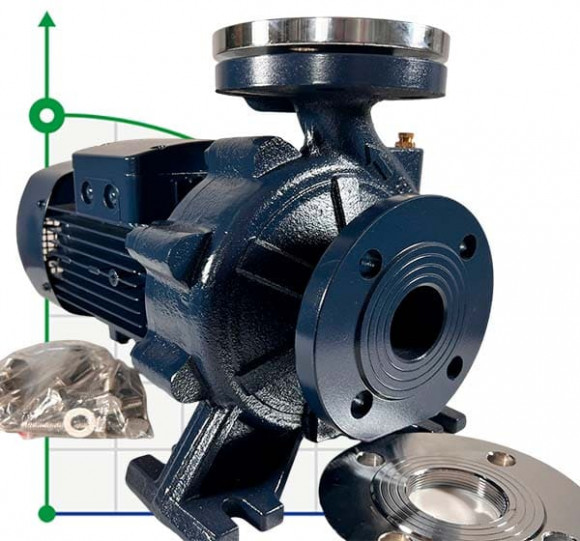

Monoblock centrifugal pump BSTm 40-125/1.1, 3000
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for Monoblock centrifugal pump BSTm 40-125/1.1, 3000
Overview
BST monobloc pump. Purpose: heating systems, water systems, pressure systems, non-aggressive fluids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, coolants, drilling mixtures, liquid mixtures, solvents.
Analogs: Calpeda NM, Pedrollo H/ HF, Ebara 3D. Speroni CFM / mem / CS.
The pump is used to work with non-aggressive liquids that are not chemically aggressive to the pump body. The impeller is made of cast iron.
Characteristics
| Producer | BTS Engineering |
| Pump capacity, m3/h | 25 |
| Feed height, m | 11 |
| Power capacity, kW | 1,1 |
| Material | cast iron |
| Input pipe diameter | DN65 |
| Output pipe diameter | DN40 |
| Rate of turn, rpm | 3 000 |
| Protection | IP55 |
| Power supply | 1х220 V, 50 Hz |
| Explosion protection | No |
| Max.temperature, C | 120 |
| Nom.flow rate, m3/h | 25 |
| Nom.head, m | 11 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Housing material | Сast iron |
| Impeller material | cast iron |
| Serial number of the pump | BST |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | antifreeze, water supply, glycerol, detergents, non-corrosive liquids, increasing pressure, heating systems, coolant, process fluids, brake fluids, antifreeze |
| Analogue for | Ebara 3D, Speroni CFM, Speroni MEM, Speroni CS, Pedrollo HF, CALPEDA NM |
| Weight, kg | 36 |
| Length of transport packing, cm | 49,5 |
| Width of transport packing, cm | 27 |
| Height of transport packing, cm | 34 |
| Transport packing volume, cbm | 0,045 |
