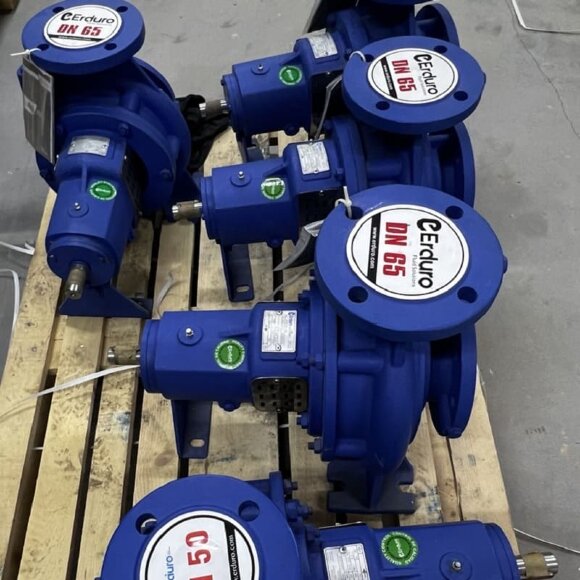

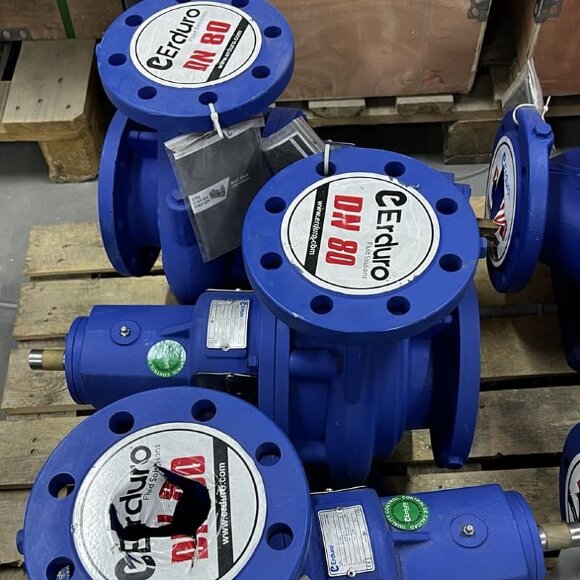

BTKF 80-250 Cantilever Single Stage Pump (3000)
Also buy with this product
Documentation
Download instructions, catalog for BTKF 80-250 Cantilever Single Stage Pump (3000)
Overview
DESIGN FEATURES Bare Shaft Centrifugal Pumps. (DIN 24255)
- BTKF series pumps has designed for pumping non-abrasive and small particulars liquids.
- BTKF series pump has just one impeller, pump and motor is connecting by coupling. It gives yours avantages for easy disassembling.
- Pump Dimensions are according to EN 733 - DIN 24255 standard.
- Input and output flange dimensions are acceptable IEN 1092-2/PN 16.
- BTKF series is off the wheel and wheel balancing holes in the wings to minimize ta axial loads, dynamic loads are balanced within.
- Sealing is provided by gland packing. Sealing is provided by also mechanical seal as customer request.
- Easy dissasamble to pump and change impeller, bearings and seals.
- All impellers are statically and dynamically balanced according to ISO 1940 class 6.3.
- In addition to 29 models, 10 complementary models are designed in according to EN 733 standards. The main dimensions of complementary models may different from other manufacturers.
- Direction of rotation is clockwise viewed from the driver end.
- Optionally, pumps can be manufactured with shaft bushings and/or wear rings.
Characteristics
| Producer | ERDURO |
| Pump capacity, cu.m/hour | 220 |
| Feed height, m | 102 |
| Power capacity, kW | 37 - 45 - 55 - 75 |
| Material | cast iron |
| Input pipe diameter | DN100 |
| Output pipe diameter | DN80 |
| Rate of turn, rpm | 3 000 |
| Power supply | 3х380 V, 50 Hz |
| Max. head, m | 102 |
| Nom.head, m | 77 |
| Nom.pressure, Mpa | 1,6 |
| Dimensions, mm | 450x480x604 |
| Nom.flow rate, m3/h | 150 |
| Max.flow rate, m3/h | 220 |
| Max.temperature, C | 110 |
| Material of flow channel | cast iron |
| Impeller material | cast iron |
| Serial number of the pump | BTKF |
| Country of Origin | Turkey |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | without engine |
| Warranty, months | 12 |
| Application | water, cooling tower, ice water, water recycling, heating, increasing pressure, glaze, the drying chamber, drying, circulation |
| Weight, kg | 81 |
