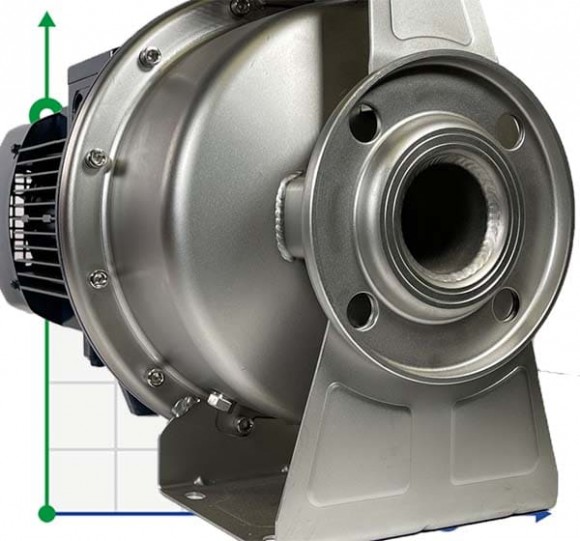

BZm 32-160/1,5 centrifugal monoblock pump (AISI)
Also buy with this product
Documentation
Download instructions, catalog for BZm 32-160/1,5 centrifugal monoblock pump (AISI)
Overview
Stainless steel standard pump BZ
Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation,
industrial applications, water circulation in climatisation sets, agricultural applications.
Suitable for use with clean, aggressive liquids that are chemically
compatible with the materials from which the pump is made.
The pumps must be installed in enclosed places, or at least protected against inclement weather.
TECHNICAL DESCRIPTION
- New stainless steel standard pump
- Original design by PURITY
- Both square motor & round motor available
- YE3 high efficient motor, with protection IP55 class F
- Pump case in stainless steel AISI 304
- Impeller in stainless steel AISI 304
- Shaft in stainless steel AISI 304
- Quality NSK bearing, wear resistance mechanical seal
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 12 |
| Feed height, m | 24.5 |
| Power capacity, kW | 1,5 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | 50 |
| Output pipe diameter | 32 |
| Protection | IP55 |
| Power supply | 1х220 V, 50 Hz |
| Explosion protection | No |
| Max.temperature, C | 120 |
| Nom.flow rate, m3/h | 12 |
| Nom.head, m | 24.5 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Housing material | AISI 304 stainless steel |
| Impeller material | AISI 304 stainless steel |
| Serial number of the pump | BZm |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | CIP-washing, ammonia mixture, Braga, brew, wine, water, cooling tower, liquid fertilizer, CAS, caustic, ice water, milk, urea, water recycling, heating, food, increasing pressure, glaze, mudflow solution, juices, salt, wort, the drying chamber, drying, cheesecloths |
| Weight, kg | 22,5 |
| Length of transport packing, cm | 43 |
| Width of transport packing, cm | 34 |
| Height of transport packing, cm | 27 |
| Height of transport volume, cbm | 0,039 |
Categories:Cantilever pumpsCentrifugal pumpsPump for the extractPumps for stillage, mashWine pumpsWater pumpsPumps for UANMilk pumpsPumps for urea, liquid fertilizers, ammoniaBeer pumpsVegetable oil pumpsFertilizer pumpsPumps for mineral fertilizers (carbamido-ammonia mCentrifugal pumps made of stainless steelPumps for pumping milkFood pumps
