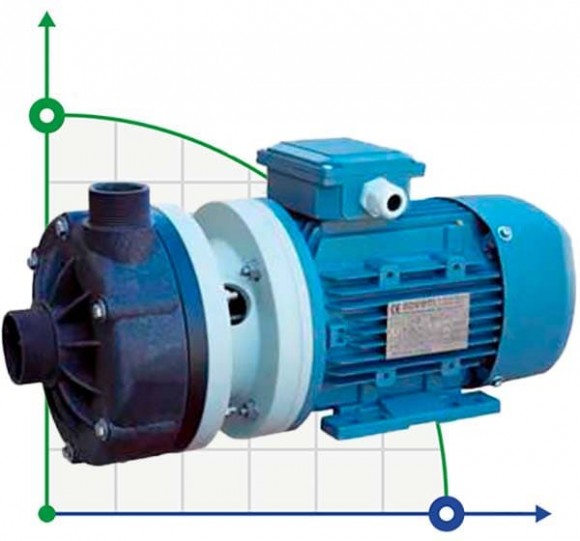

Horizontal centrifugal pump MB 130, PVDF - MECHANICAL SEAL
Also buy with this product
Documentation
Download instructions, catalog for Horizontal centrifugal pump MB 130, PVDF - MECHANICAL SEAL
Overview
Horizontal centrifugal pumps for pumping acids and alkalis from the polymer have a solid body and a viewing window to check the status of the mechanical seal.
Key features of a centrifugal pump 130 MB
- the centrifugal pump capacity up to 30 m3 / h;
- the pump is made without welds;
- pumping liquids containing solid, and the insoluble particles of up to 6 mm;
- pumping viscous fluids up to 500 cPz;
- mechanical sealing lip or bellows;
- Work with contaminated fluids;
- ease of maintenance and replacement of spare parts;
- Low cost of spare parts.
Characteristics
| Producer | DEBEM |
| Pump capacity, cu.m/hour | 30 |
| Feed height, m | 19 |
| Power capacity, kW | 2,2 |
| Material | PVDF |
| Input pipe diameter | 2" |
| Output pipe diameter | 1 1/2" |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 30 |
| Model | МВ 130 |
| Max.temperature, C | 95 |
| Max.viscosity, cPs | 500 |
| Seal | TS - Viton |
| Max. head, m | 19 |
| Material of flow channel | PVDF |
| Serial number of the pump | MB |
| Country of Origin | Italy |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Availability of spare parts | Yes |
| Weight, kg | 23,5 |
