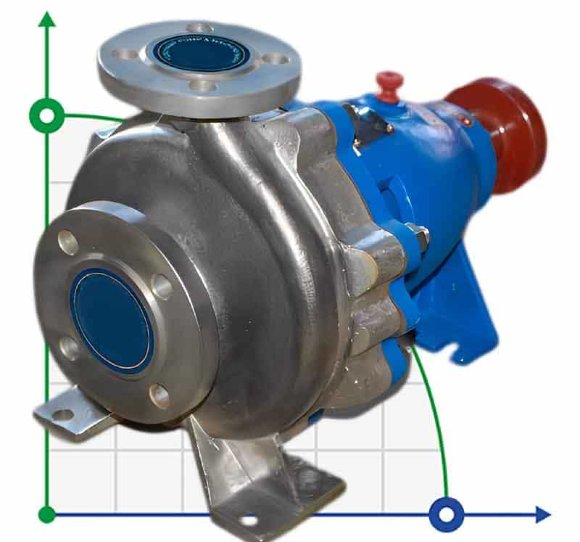

Cantilever pump BS 40-315/220, AISI 304, 2900, without motor
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for Cantilever pump BS 40-315/220, AISI 304, 2900, without motor
Overview
The BS series cantilever pump is used in water supply systems, agriculture, industrial fluid transfer, pressure boosting, air conditioning, district cooling, irrigation, fire fighting and much more.
Characteristics
| Producer | BTS Engineering |
| Pump capacity, m3/h | 42 |
| Feed height, m | 106 |
| Power capacity, kW | 22 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | DN65 |
| Output pipe diameter | DN40 |
| Rate of turn, rpm | 2 900 |
| Power supply | 3х380 V, 50 Hz |
| Max.flow rate, m3/h | 42 |
| Impeller diameter, mm | 275 |
| Max. head, m | 106 |
| Pressure, bar | 20 |
| Serial number of the pump | BS |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Warranty, months | 12 |
