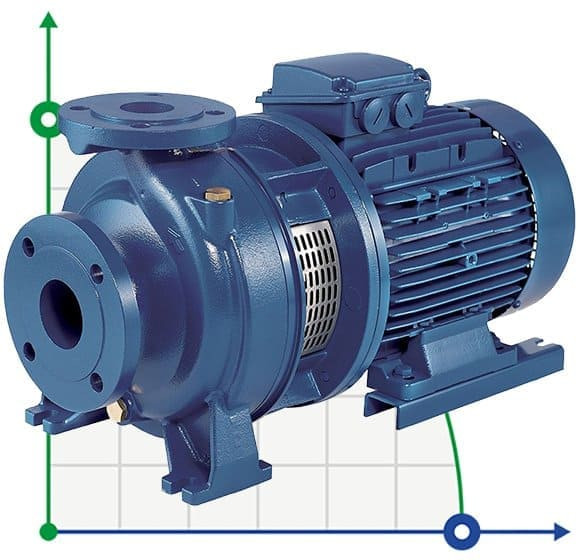

Monobloc centrifugal pump 3DS/I 32-160/1,5
Also buy with this product
Overview
The 3DS series are EBARA standardized pumps manufactured in accordance with EN733, with a cast iron casing and an AISI 304 stainless steel impeller. The 3DS series pumps are versatile devices that can be used and offer significant advantages in terms of reliability, efficiency and cost savings . Applications: intended for pumping running water, for residential, commercial, agricultural and industrial applications, for increasing pressure, for heating and air conditioning systems. It can also be used to irrigate fields, sports grounds and in washing plants.
Characteristics
| Producer | Ebara |
| Pump capacity, cu.m/hour | 20 |
| Feed height, m | 28.5 |
| Power capacity, kW | 1,5 |
| Material | cast iron |
| Input pipe diameter | DN 50 |
| Output pipe diameter | DN 32 |
| Rate of turn, rpm | 3 000 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 20 |
| Max.temperature, C | 110 |
| Seal | Mechanical Seal |
| Max. head, m | 28.5 |
| Housing material | Сast iron |
| Impeller material | AISI 304 stainless steel |
| Shaft material | AISI 304 stainless steel |
| Serial number of the pump | 3DS |
| Country of Origin | Italy |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Weight, kg | 36,3 |
