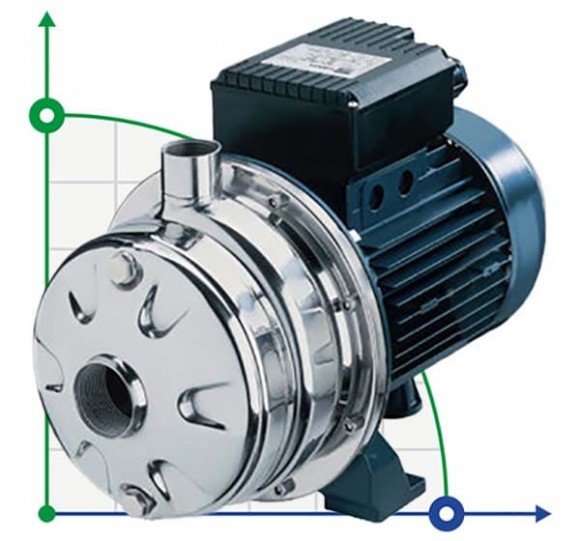

Ebara 2CDX 70/15, 380V pump
Also buy with this product
Overview
Ebara centrifugal pumps with two impellers with hydraulic components, which are made of Aisi 304 stainless steel (custom AISI 316).
Application: water treatment; filtration; industrial sinks; pressure boosting; industrial equipment; heating and air conditioning; cooling and refrigeration systems; irrigation; pumping moderately aggressive liquids.
Technical data: capacity up to 14.4 m3/h; feed height up to 75 M; T.E.F.C. 2-pole motor; insulation Class F; protection class IP 55; single-phase 220v, 50 Hz, three-phase 380V, 50 Hz; built-in capacitor and automatic thermal overload protection for the single-phase version. For the three-phase version, thermal overload protection must be provided by the consumer. Inlet pipe 1" 1/2 for 2cdx200, 1 " 1/4 for other models. Outlet pipe 1"
Characteristics
| Producer | Ebara |
| Pump capacity, cu.m/hour | 4.8 |
| Feed height, m | 52.5 |
| Power capacity, kW | 1,1 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | G1 1/4 |
| Output pipe diameter | G1 |
| Rate of turn, rpm | 2 800 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 4.8 |
| Max.temperature, C | 60 |
| Seal | Mechanical Seal, Carbon/Ceramic/NBR |
| Max. head, m | 52.5 |
| Housing material | AISI 304 stainless steel |
| Material of flow channel | AISI 304 stainless steel |
| Impeller material | AISI 304 stainless steel |
| Shaft material | AISI 304 stainless steel |
| Serial number of the pump | 2CDX |
| Country of Origin | Italy |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Application | CIP-washing, ammonia mixture, Braga, brew, wine, water, cooling tower, liquid fertilizer, CAS, caustic, ice water, milk, urea, water recycling, heating, food, increasing pressure, glaze, mudflow solution, juices, salt, wort, the drying chamber, drying, cheesecloths |
| Weight, kg | 17 |
