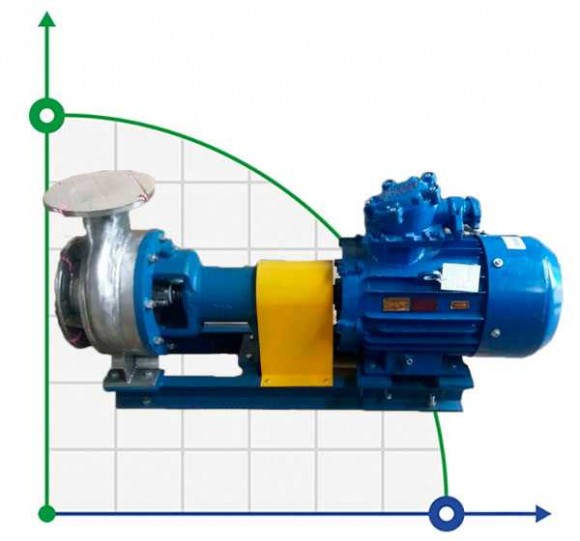

The pump of the brew column BTS 300/20 VTBO EX
Also buy with this product
Overview
The BTS 300/20 VTBO EX pump is designed for pumping food and chemically aggressive liquid and puree-like products.
To ensure reliable and long-term operation of the pump, the electric motor is made of explosion proof EX/. The pump can be used for pumping liquids with a temperature up to 150 ° C and a density of no more than 1400 kg/m3.
Pumps of this series are widely used for chemical, alcohol, machine-building and oil refining industries.
Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 300 |
| Feed height, m | 20 |
| Power capacity, kW | 30 |
| Input pipe diameter | DN200 |
| Output pipe diameter | DN150 |
| Rate of turn, rpm | 1 500 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Nom.pressure, Mpa | 0,2 |
| Max.temperature, C | 140 |
| Nom.flow rate, m3/h | 300 |
| Nom.head, m | 20 |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
Categories:Cantilever pumpsCentrifugal pumpsPumps for stillage, mash
