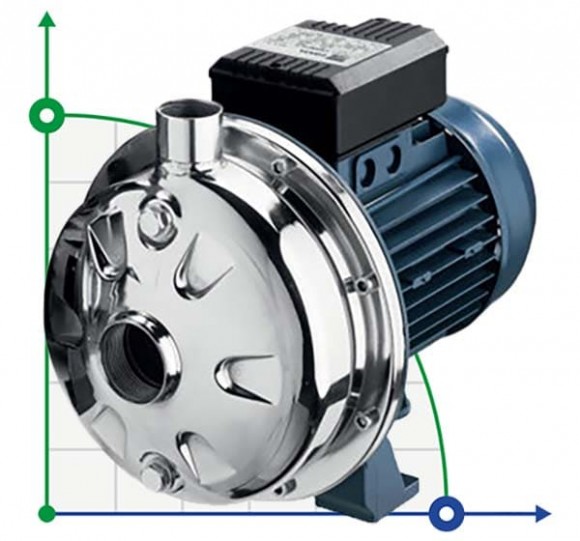

Ebara CD(X) 70/07, 380V pump
Also buy with this product
Overview
Ebara single impeller centrifugal pumps with hydraulic components, which are made of Aisi 304 stainless steel (custom AISI 316).
Application: water treatment; filtration; industrial sinks; pressure boosting; industrial equipment; heating and air conditioning; cooling and refrigeration systems; irrigation; pumping moderately aggressive liquids.
Technical data: capacity up to 15 m3/h; feed height up to 42 M; T.E.F.C. 2-pole motor; insulation Class F; protection class IP 55; operating voltage: single-phase 220V, 50 Hz, three-phase 380V, 50 Hz; inlet pipe 1" 1/2 for CDX 200, 1 "1/2 for other models; outlet pipe 1"
Built-in capacitor and automatic thermal overload protection for the single-phase version. For the three-phase version, thermal overload protection must be provided by the consumer.
Characteristics
| Producer | Ebara |
| Pump capacity, cu.m/hour | 4.8 |
| Feed height, m | 28 |
| Power capacity, kW | 0,55 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | G1 1/4 |
| Output pipe diameter | G 1 |
| Rate of turn, rpm | 2 800 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 4.8 |
| Max.temperature, C | 60 |
| Seal | Mechanical Seal, Carbon/Ceramic/NBR |
| Max. head, m | 28 |
| Housing material | AISI 304 stainless steel |
| Impeller material | AISI 304 stainless steel |
| Shaft material | AISI 303 |
| Serial number of the pump | CD(X) |
| Country of Origin | Italy |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Weight, kg | 11,1 |
