Centrifugal chemical pump DiaPump PA-6900 (5,5 kWt)
Also buy with this product
Documentation
Download instructions, catalog for Centrifugal chemical pump DiaPump PA-6900 (5,5 kWt)
Overview
Centrifugal pumps of Pa production line of Turkish manufacturer are distinguished by high reliability and maintainability and at the same time have fair price, not holding out for quality of Italian, German and USA manufactories.
Centrifugal pump PA is appointed for pumping over the aggressive media (azotic acid, sulphuric acid, caustic soda, dissolvent and etc.)
The pump casing is made of Polypropylene that provides its chemical resistance and operating reliability.
The main feature of horizontal pump:
- The capacity varies in wide range (from 5 to 40 cubic meters per hour);
- Without welded couplings;
- Pumping over the liquids that contains solid and nonsoluble particles with sizes to 7 mm.;
- Transferring viscous liquids to 500 cPs;

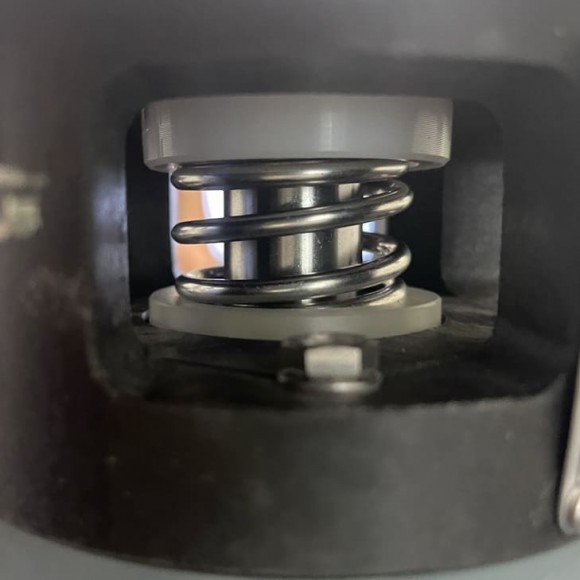

- Mechanical seal made of chemical rubber;
- Ease of operation maintenance and changeover of constituent parts;
- Low-cost of spare parts.
The main fields of appliance of these pumps are chemical industry, electrodepositions, power washers and other fields.
Characteristics
| Producer | DiaPump |
| Pump capacity, cu.m/hour | 40 |
| Feed height, m | 40 |
| Power capacity, kW | 5,5 |
| Material | PP |
| Input pipe diameter | 75 |
| Output pipe diameter | 63 |
| Rate of turn, rpm | 3 000 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 40 |
| Max.temperature, C | 60 |
| Max. head, m | 40 |
| Shaft material | AISI 316 stainless steel |
| Country of Origin | Turkey |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Availability of spare parts | Yes |
| Warranty, months | 12 |
Categories:Cantilever pumpsCentrifugal pumpsNitric acid pumpAcid pumpsLye pumpsElectroplating pumps
