ProducerEMSE
Pump capacity, m3/h200
Feed height, m44.3
Power capacity, kW37
Materialcast iron
All specifications
Ukraine: Pre-order onlyPoland: Pre-order onlyGermany: Pre-order onlyItaly: Pre-order only
Vendor code: 1055394
Specify the price and terms of delivery with the manager

Estimated delivery date: 04.11.2025

$7,597netto
-+Buy
Buy in 1 click

Documentation

Download instructions, catalog for Single-stage console pump ENP 100-200, 37 kW, 2900 rpm on a frame with an engine

Overview

EMSE

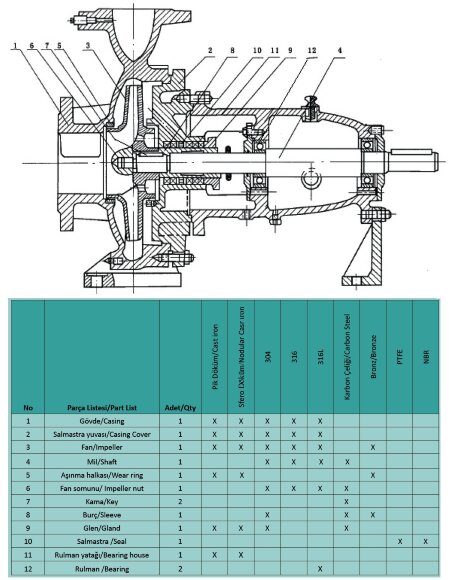

Single-stage cantilever pump of the ENP series from the Turkish manufacturer EMSE. The pump features the ability to replace rotating parts (shaft, impeller, mechanical seal) without disconnecting pipework to reduce equipment downtime. All components of the pumping part are interchangeable, which greatly simplifies the process of selecting spare parts. It is used for pumping liquids with a temperature of up to +120 ºC and a viscosity of up to 1200 kg/m3. It is used in heating and cooling systems, water supply, chemical, medical and metallurgical industries.

Characteristics

ProducerEMSE
Pump capacity, m3/h200
Feed height, m44.3
Power capacity, kW37
Materialcast iron

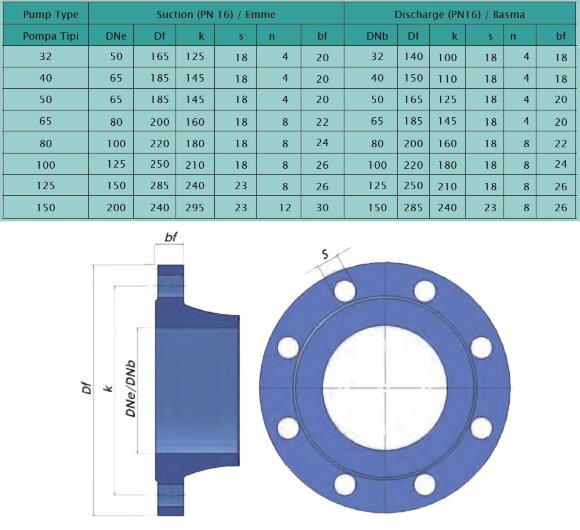

Input pipe diameterDN125
Output pipe diameterDN100
Rate of turn, rpm2 900
Power supply3х380 V, 50 Hz
Explosion protectionNo
Max.flow rate, m3/h300
Max.temperature, C110
Nom.flow rate, m3/h200
Nom.head, m44.3
SealMechanical Seal
Max. head, m51.2
Housing materialСast iron
Impeller materialcast iron
Shaft materialAISI 420
Serial number of the pumpENP
Country of OriginTurkey
PumpTypeconsole
Drive Typeelectric
Installation Typehorizontal
Type of configurationwith engine
Warranty, months12
