Monoblock pump SAER IR 32 - 160A 3.0 kW
Also buy with this product
Overview

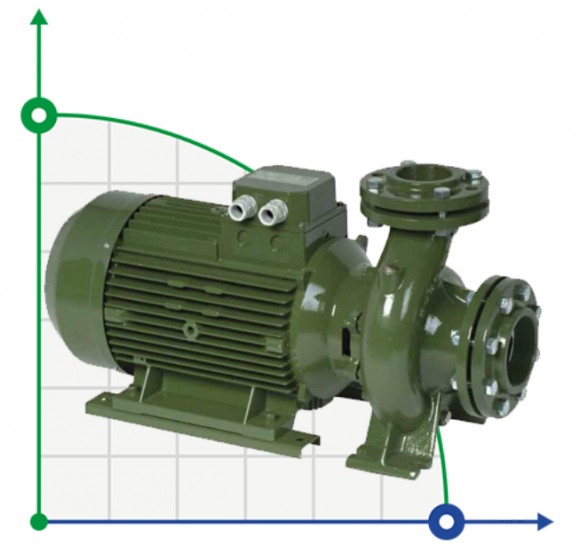

Monoblock pump IR 32 - 160A 3.0 kW SAER.
Decoding SAER IR pumps:
IR - cantilever monoblock pumps from SAER,
32 - diameter of the pressure pipe in mm,
160 - diameter of the impeller (impeller),
A is the type of electric motor used.
Centrifugal single-stage cantilever monoblock electric pumps SAER IR series, this is Italian quality, combined with a very reasonable price. Like other pumps of this type, they are used in many areas of industry and not only. The production of SAER IR pumps is exclusively in Italy.
By design, these pumps are monoblock (the motor shaft is located directly in the pumping part) with one impeller. The pump connections are flanged according to the UNI EN 1092-2 standard. The electric motors of these pumps are standard asynchronous. The IR models have 2-pole electric motors (3000 rpm), the IR4P4 series has 4-pole motors (1500 rpm). Models up to 4 kW can be equipped with 220V electric motors. They are equipped with mechanical seals, which can be made of various materials on request (depends on the type of medium being pumped). Horizontal and vertical installation is possible (for vertical installation, the electric motor must be on top), but these conditions must be agreed with the specialists of the SAER plant.
SAER IR pumps are capable of pumping liquids from -15 to + 120C. They are capable of pumping slightly contaminated liquids, as well as chemical liquids that are neutral to the material of the pumping part. For more aggressive or food-grade media, the pumping part can be made of stainless steel. Ambient temperature no more than + 40C.
The main advantages of SAER IR pumps: the pumping part can be made of various materials: cast iron, spheroidal cast iron, stainless steel and bronze. Mechanical seals of various materials depending on the pumped medium. Horizontal and vertical installation of the electric pump. Italian quality
Technical characteristics of the SAER IR 32-160A model:
Maximum flow, m3/h - 20;
Maximum pressure, m - 35;
Suction flange, mm - 50;
Pressure flange, mm - 32;
Unit weight, kg - 35;
Working wheel - cast iron;
The temperature of the pumped medium is from -15 to +120C.
Characteristics
| Producer | SAER |
| Pump capacity, cu.m/hour | 20 |
| Feed height, m | 37 |
| Power capacity, kW | 3 |
| Material | cast iron |
| Input pipe diameter | 50 |
| Output pipe diameter | 32 |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 20 |
| Max.pump flow, m3/h | 20 |
| Max.temperature, C | 120 |
| Seal | Mechanical Seal |
| Max. head, m | 37 |
| Impeller material | cast iron |
| Serial number of the pump | IR |
| Country of Origin | Italy |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Weight, kg | 35 |
