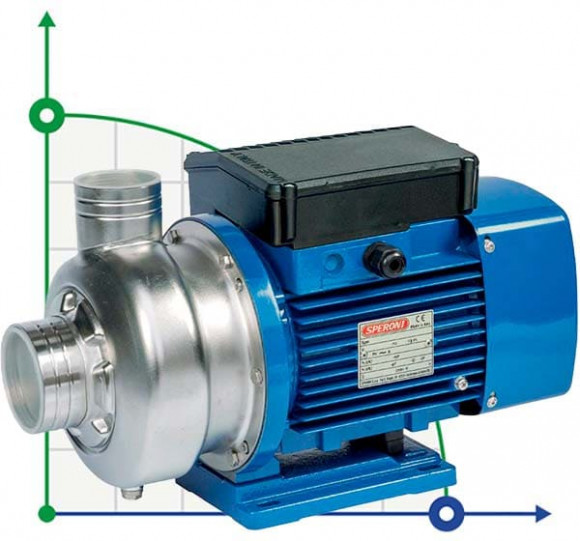

Centrifugal pump Speroni WX 500-A/2,2
Also buy with this product
Overview
The Speroni WX series centrifugal pump is used to transfer residual suspension substances from food processing, cleaning vegetables, meat or fish, or for cleaning metal parts, bottles, cans or glassware. They are also used in the circulation system or for the transit of any type of dirty liquid and corrosive liquids. Suitable for use as part of a factory sink and industrial dishwashers.
Characteristics
| Producer | Speroni |
| Pump capacity, cu.m/hour | 66 |
| Feed height, m | 15 |
| Power capacity, kW | 2,2 |
| Input pipe diameter | 2” 1/2 |
| Output pipe diameter | 2" |
| Rate of turn, rpm | 2850 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 66 |
| Max.temperature, C | 90 |
| Flow rate, l/min | 1100 |
| Dimensions, mm | 426x193x258 |
| Seal | Mechanical Seal SIC/SIC/Viton |
| Max. head, m | 15 |
| Housing material | AISI 304 stainless steel |
| Impeller material | AISI 304 stainless steel |
| Shaft material | AISI 304 stainless steel |
| Serial number of the pump | WX |
| Country of Origin | Italy |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Weight, kg | 22 |
