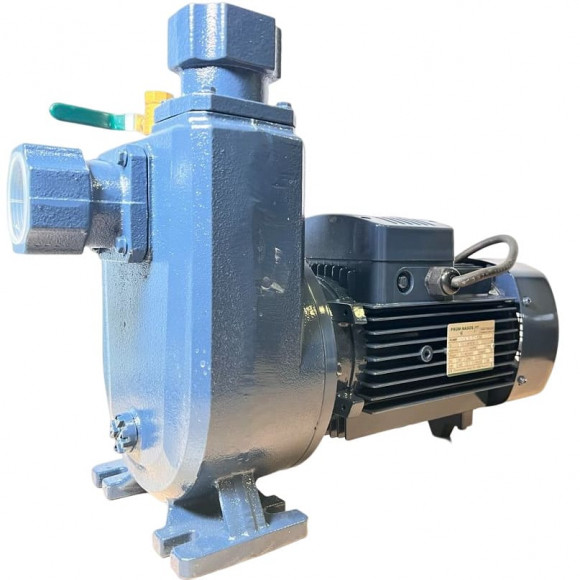

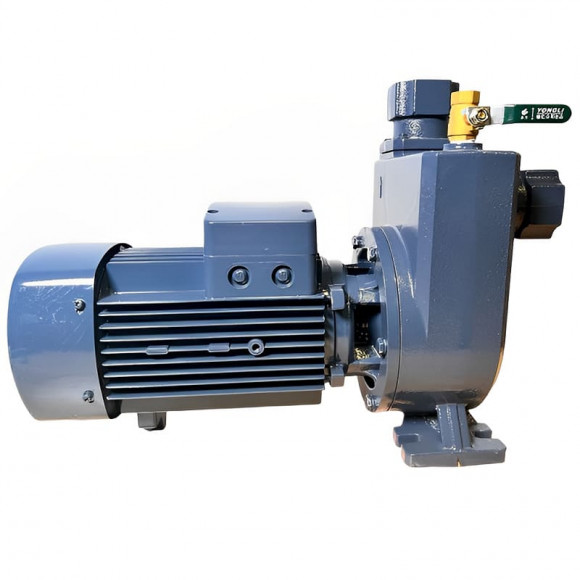

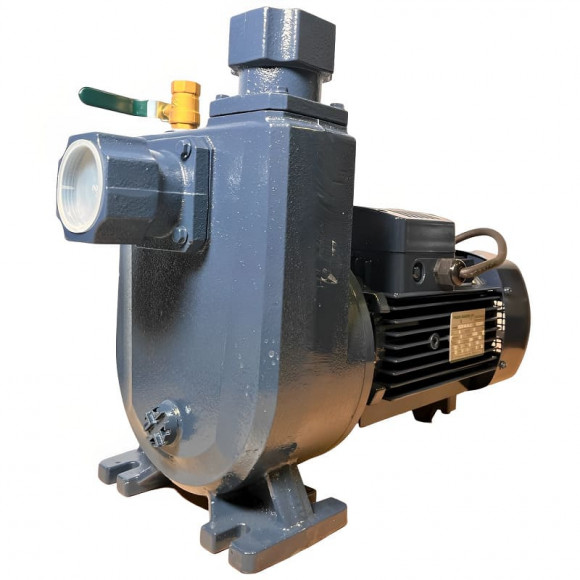

Drainage sewage pump BXZ W28-38-4kW, 2900, 380V (like Andizhanets ANS)
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for Drainage sewage pump BXZ W28-38-4kW, 2900, 380V (like Andizhanets ANS)
Overview
The BXZ self-priming centrifugal pump is recommended for use in water supply systems, washing systems, pressure systems, irrigation, pumping of liquids. The pump body is made of cast iron. The material of the impeller is cast iron.

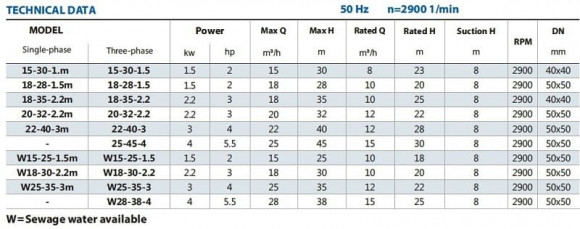

Characteristics
| Producer | BTS Engineering |
| Pump capacity, m3/h | 28 |
| Feed height, m | 38 |
| Power capacity, kW | 4 |
| Material | cast iron |
| Input pipe diameter | DN50 |
| Output pipe diameter | DN50 |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 28 |
| Max.temperature, C | 120 |
| Suction capacity (NPSH), m | 8 |
| Nom.flow rate, m3/h | 15 |
| Impeller type | open impeller |
| Nom.head, m | 25 |

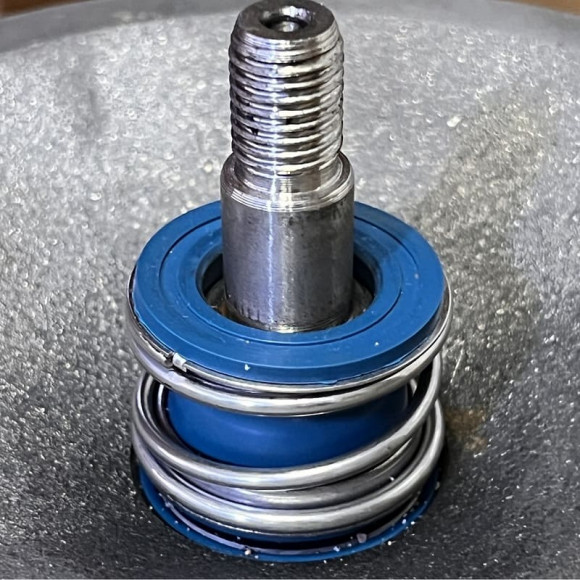

| Seal | Mechanical Seal, SiC/Carbon/SS304 |
| Max. head, m | 38 |
| Housing material | Сast iron |

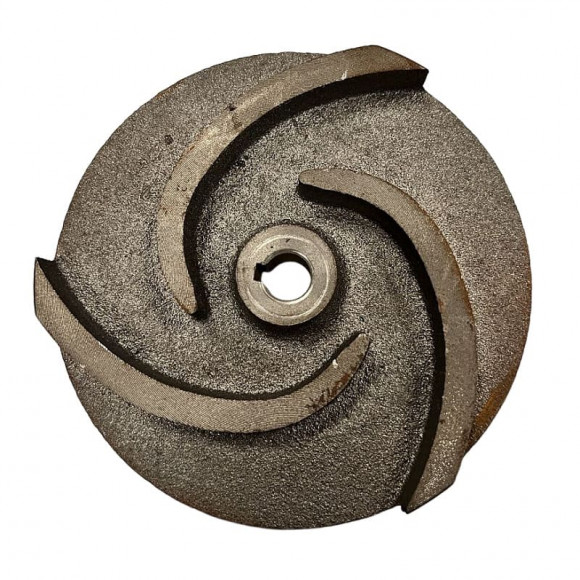

| Impeller material | cast iron |
| Shaft material | chrome steel |
| Serial number of the pump | BXZ |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Weight, kg | 53 |
| Transport packing volume, cbm | 0,077 |
