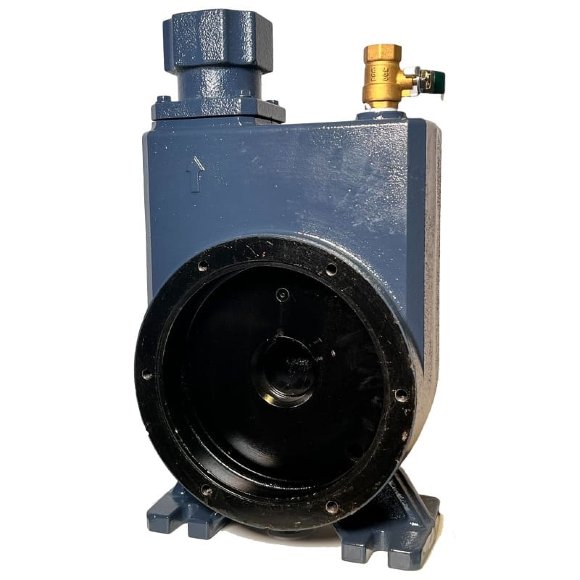

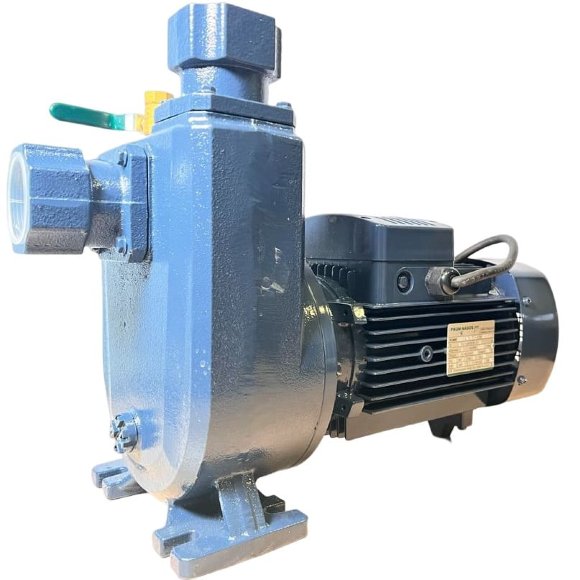

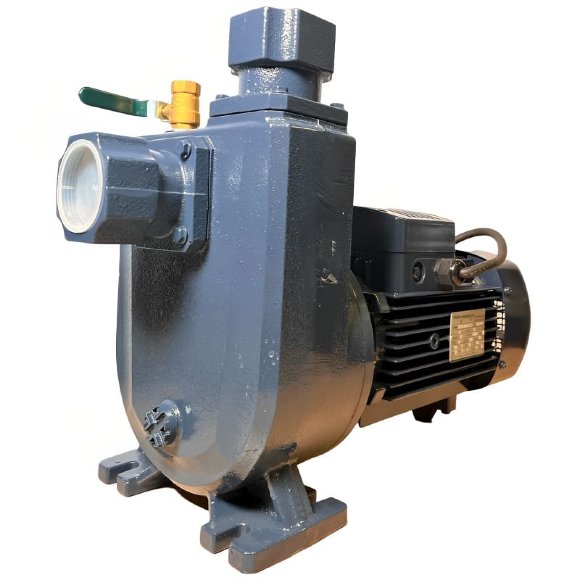

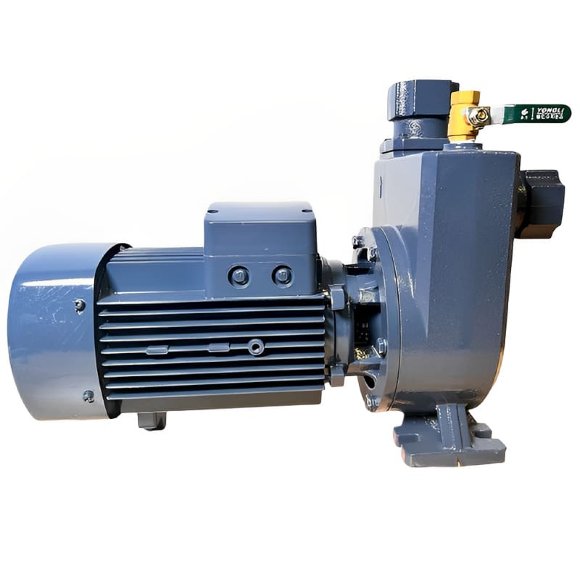

Faecal pump BXZm 22-40-3kW, 2900, 220V, imp:AISI 304 self-priming (like Andizhanets ANS)
Also buy with this product
Documentation
Download instructions, catalog for Faecal pump BXZm 22-40-3kW, 2900, 220V, imp:AISI 304 self-priming (like Andizhanets ANS)
Overview
The BXZ self-priming centrifugal pump is recommended for use in water supply systems, washing systems, pressure systems, irrigation, pumping of liquids. The pump body is made of cast iron. The material of the impeller is cast iron.

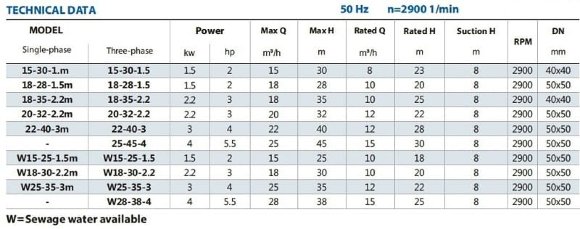

Characteristics
| Producer | BTS Engineering |
| Pump capacity, m3/h | 22 |
| Feed height, m | 40 |
| Power capacity, kW | 3 |
| Material | cast iron |
| Input pipe diameter | 50 |
| Output pipe diameter | 50 |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |

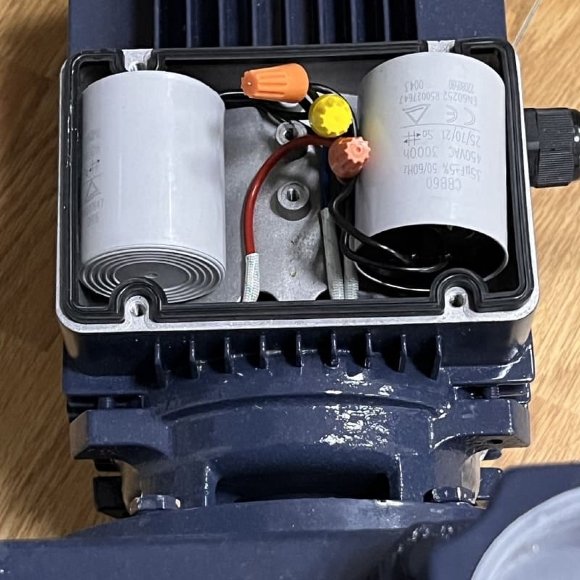

| Power supply | 1х220 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 22 |
| Max.temperature, C | 120 |
| Suction capacity (NPSH), m | 8 |
| Nom.flow rate, m3/h | 12 |
| Nom.head, m | 28 |

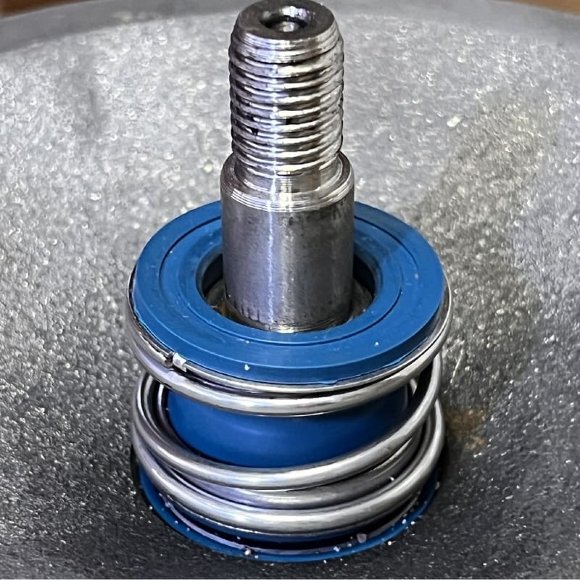

| Seal | Mechanical Seal, SiC/Carbon/SS304 |
| Max. head, m | 40 |
| Housing material | Сast iron |

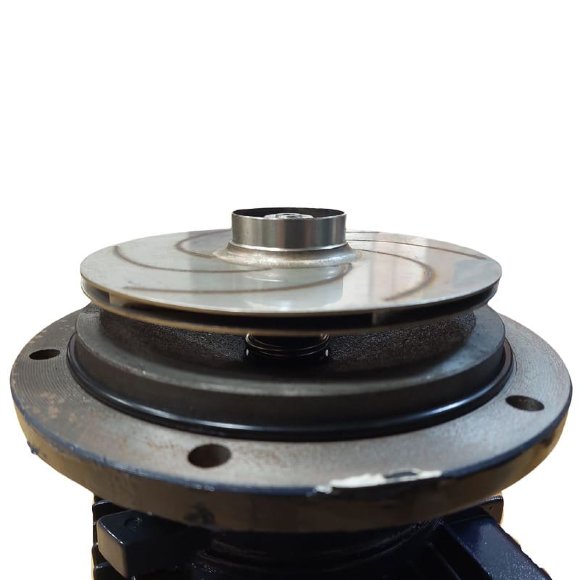

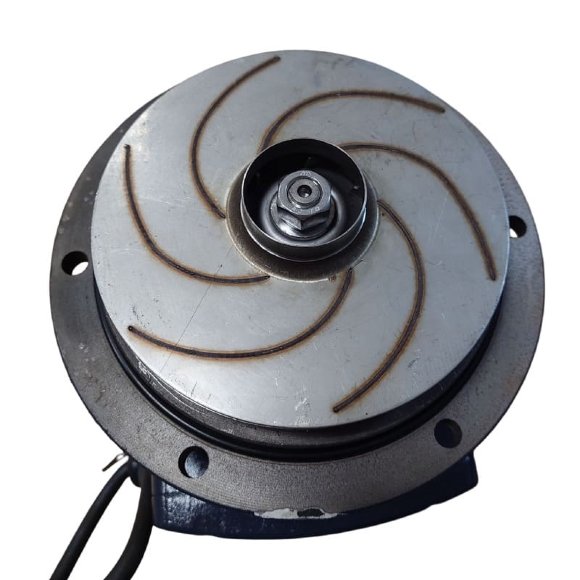

| Impeller material | AISI 304 stainless steel |
| Shaft material | chrome steel |
| Serial number of the pump | BXZ |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Weight, kg | 50 |
| Transport packing volume, cbm | 0,077 |
