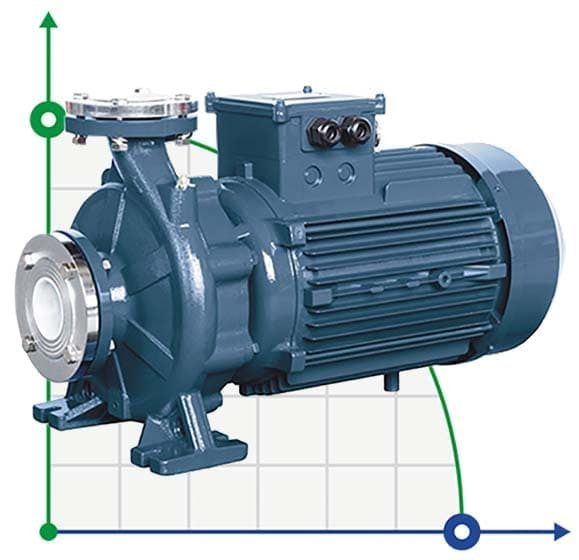

Pump for process fluids BST4 150-400/132, 1500
Also buy with this product
Documentation
Download instructions, catalog for Pump for process fluids BST4 150-400/132, 1500
Overview
The BST4 series monoblock pump is designed for heating, water supply , pressure boosting systems, non-aggressive liquids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, cooling fluids, drilling fluids, mixtures of liquids, solvents.
Analogs: Calpeda NM, Pedrollo H/HF, Ebara 3D. Speroni CFM/mem/CS
The pump is used to work with both non-aggressive liquids that are not chemically aggressive towards the pump body.
The impeller is made of cast iron.
Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 400 |
| Feed height, m | 64.5 |
| Power capacity, kW | 132 |
| Material | cast iron |
| Input pipe diameter | 200 |
| Output pipe diameter | 150 |
| Rate of turn, rpm | 1 500 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.temperature, C | 120 |
| Nom.flow rate, m3/h | 400 |
| Nom.head, m | 64.5 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Housing material | Сast iron |
| Impeller material | cast iron |
| Serial number of the pump | BST4 |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | antifreeze, water supply, glycerol, detergents, non-corrosive liquids, increasing pressure, heating systems, coolant, process fluids, brake fluids, antifreeze |
| Analogue for | Pedrollo HF, Ebara 3D, Speroni CFM, Speroni MEM, Speroni CS, CALPEDA NM |
| Weight, kg | 1 147 |
| Length of transport packing, cm | 165 |
| Width of transport packing, cm | 65 |
| Height of transport packing, cm | 88 |
| Height of transport volume, cbm | 0,944 |
