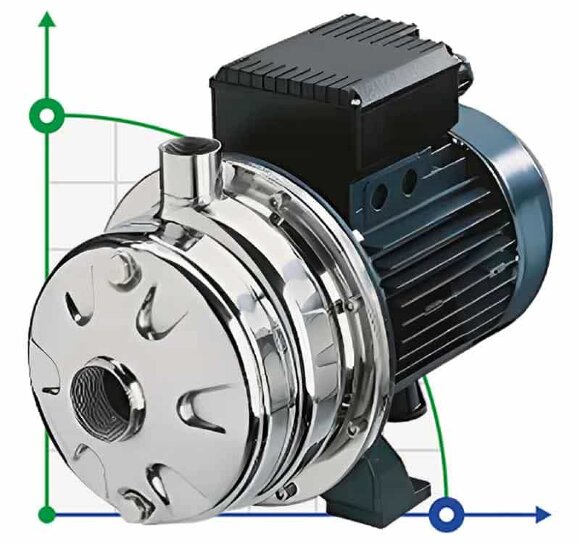

Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX 200/50)
Also buy with this product
Documentation
Download instructions, catalog for Stainless steel pump for garden irrigation CBX/500, 3.7 kW, 12.6 m3/h, 75m, 380V/T, AISI 304 (EBARA 2CDX 200/50)
Overview
CBX series centrifugal pumps with two impellers, made entirely of stainless steel, are suitable for domestic, agricultural and industrial applications. All parts in contact with the pumped liquid are made of AISI 304 stainless steel to ensure maximum hygiene and corrosion resistance. Pump housing, impeller, diffusers: AISI 304 stainless steel. Motor shaft: AISI 303 stainless steel. Bracket and motor housing: aluminium. Mechanical seal: Cer/Car/NBR.
Characteristics
| Producer | ST Pompe |
| Pump capacity, m3/h | 12.6 |
| Feed height, m | 75 |
| Power capacity, kW | 3,7 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | 1 1/2" |
| Output pipe diameter | 1" |
| Rate of turn, rpm | 3 000 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 12.6 |
| Max.temperature, C | 90 |
| Suction capacity (NPSH), m | 7 |
| Seal | Mechanical Seal, Carbon/Ceramic/NBR |
| Max. head, m | 75 |
| Pressure, bar | 8 |
| Housing material | AISI 304 stainless steel |
| Impeller material | AISI 304 stainless steel |
| Shaft material | AISI 303 |
| Serial number of the pump | CBX |
| Country of Origin | Italy |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Application | wine, water supply, water, air conditioning, milk, irrigation, heating, beer, glaze |
| Analogue for | Ebara 2СD, Ebara 2СDX, Lowara CA |
| Weight, kg | 37,5 |
