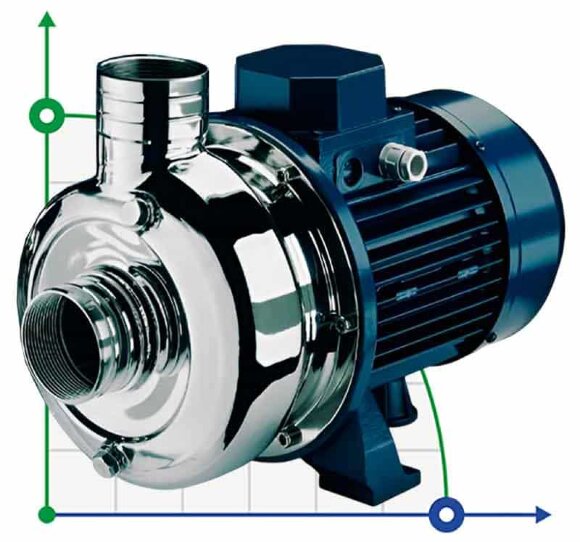

Stainless steel pump for pumping industrial liquids CHX-V/200, 1.5 kW, 24 m3/h, 24.5m, 380V/T, AISI 304 (EBARA DWC)
Also buy with this product
Documentation
Download instructions, catalog for Stainless steel pump for pumping industrial liquids CHX-V/200, 1.5 kW, 24 m3/h, 24.5m, 380V/T, AISI 304 (EBARA DWC)
Overview
CHX series pumps are made entirely of stainless steel, particularly suitable for cooling, air conditioning, heating, chillers, washing systems, civil and industrial water supply systems and irrigation. All parts in contact with the pumped liquid are made of AISI 304 stainless steel, guaranteeing maximum hygiene and corrosion resistance. Available in three-phase version only. Possibility of 2" threaded connections (CHX version) or with Victaulic® system (CHX-V pumps). Pump housing, impeller, diffusers: AISI 304 stainless steel Motor shaft: AISI 304 stainless steel. Motor housing and cover: aluminium. Mechanical seal: Cer/Car/NBR.
Characteristics
| Producer | ST Pompe |
| Pump capacity, m3/h | 24 |
| Feed height, m | 24.5 |
| Power capacity, kW | 1,5 |
| Material | AISI 304 stainless steel |
| Rate of turn, rpm | 3 000 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 24 |
| Max.temperature, C | 90 |
| Suction capacity (NPSH), m | 7 |
| Seal | Mechanical Seal, Ceramic/Carbon/NBR |
| Max. head, m | 24.5 |
| Housing material | AISI 304 stainless steel |
| Impeller material | AISI 304 stainless steel |
| Shaft material | AISI 304 stainless steel |
| Serial number of the pump | CHX |
| Country of Origin | Italy |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Analogue for | Ebara DWC |
| Weight, kg | 17,9 |
| Length of transport packing, cm | 477 |
| Width of transport packing, cm | 205 |
| Height of transport packing, cm | 280 |
