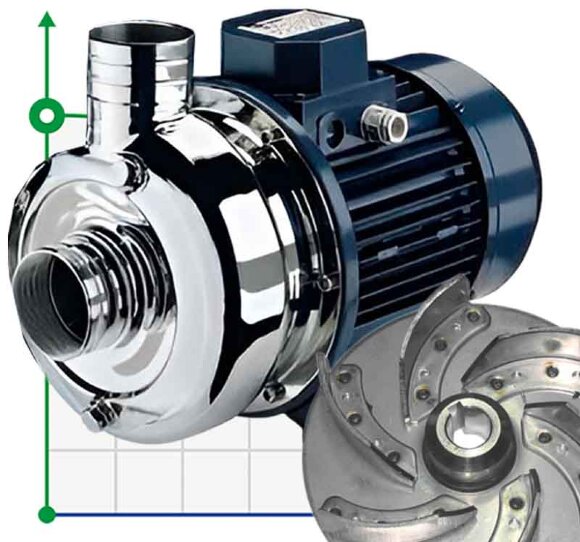

Stainless steel pump CRX EBARA DWO 200, 1.5 kW, 45 m3/h, 13.2m, 220V/M, AISI 304 with open impeller
Also buy with this product
Documentation
Download instructions, catalog for Stainless steel pump CRX EBARA DWO 200, 1.5 kW, 45 m3/h, 13.2m, 220V/M, AISI 304 with open impeller
Overview
The CRX series open impeller pumps, made entirely of stainless steel, are suitable for domestic, agricultural and industrial applications. All parts in contact with the pumped liquid are made of AISI 304 stainless steel to ensure maximum hygiene and corrosion resistance. The open impeller allows the pumping of clean or relatively dirty water with solids up to 8 mm in diameter. Pump housing, impeller, diffusers: AISI 304 stainless steel. Motor shaft: AISI 303 stainless steel. Motor housing and cover: aluminium. Mechanical seal: Cer/Car/NBR.
Characteristics
| Producer | ST Pompe |
| Pump capacity, m3/h | 45 |
| Feed height, m | 13.2 |
| Power capacity, kW | 1,5 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | 2" |
| Output pipe diameter | 2" |
| Rate of turn, rpm | 3 000 |
| Protection | IP55 |
| Power supply | 1х220 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 45 |
| Max.temperature, C | 90 |
| Suction capacity (NPSH), m | 7 |
| Seal | Mechanical Seal, Ceramic/Carbon/NBR |
| Max. head, m | 13.2 |
| Pressure, bar | 8 |
| Housing material | AISI 304 stainless steel |
| Impeller material | AISI 304 stainless steel |
| Shaft material | AISI 303 |
| Serial number of the pump | CRX |
| Country of Origin | Italy |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Application | wine, water, irrigation, meat washing, washing vegetables, fish washing, milk, beer, irrigation systems |
| Analogue for | Ebara DWO, Leo ABK, Speroni WX |
| Weight, kg | 16,5 |
| Length of transport packing, cm | 432 |
| Width of transport packing, cm | 205 |
| Height of transport packing, cm | 280 |
