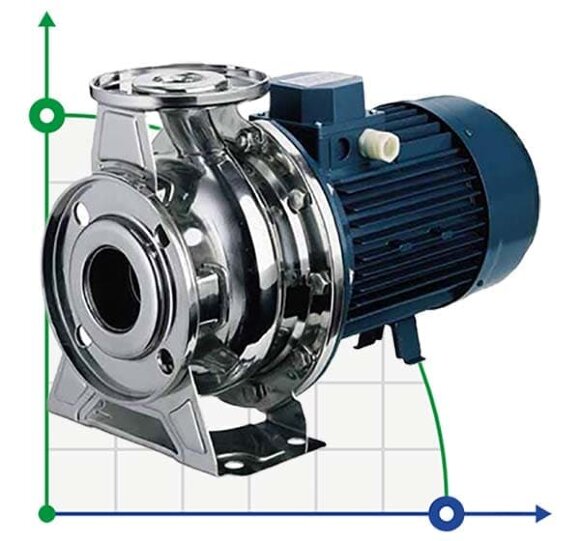

Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)
Also buy with this product
Documentation
Download instructions, catalog for Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)
Overview
Centrifugal pumps of the NX series are used for pumping chemically clean water without solid particles in heating and cooling systems, irrigation systems, fire-fighting systems. All parts of the pump in contact with the liquid are made of stainless steel and designed in accordance with DIN 24255 (UNI EN 733). The wide range and high reliability make these pumps suitable for agricultural, civil and industrial applications. Pump housing, impeller, diffusers: stainless steel AISI 304. Motor shaft: stainless steel AISI 304. Motor housing and cover: aluminum. Mechanical seal: Cer/Car/NBR (standard).
Characteristics
| Producer | ST Pompe |
| Pump capacity, cu.m/hour | 138 |
| Feed height, m | 53.5 |
| Power capacity, kW | 18,5 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | DN80 |
| Output pipe diameter | DN65 |
| Rate of turn, rpm | 3 000 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 138 |
| Max.temperature, C | 90 |
| Suction capacity (NPSH), m | 7 |
| Seal | Mechanical Seal, Ceramic/Carbon/NBR |
| Max. head, m | 53.5 |
| Pressure, bar | 10 |
| Housing material | AISI 304 stainless steel |
| Impeller material | AISI 304 stainless steel |
| Shaft material | AISI 304 stainless steel |
| Serial number of the pump | NX |
| Country of Origin | Italy |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Application | CIP-washing, ammonia mixture, Braga, brew, wine, water, cooling tower, liquid fertilizer, CAS, caustic, ice water, milk, urea, water recycling, heating, food, increasing pressure, glaze, mudflow solution, juices, salt, wort, the drying chamber, drying, cheesecloths |
| Analogue for | Speroni CX, Ebara 3M |
| Weight, kg | 127,5 |
| Length of transport packing, cm | 880 |
| Width of transport packing, cm | 390 |
| Height of transport packing, cm | 532 |
