Pump for beer, wine, alcohol CPS36S, 1.5 kW, AISI 304, 220V/50Hz, 2900 rpm
Also buy with this product
Documentation
Download instructions, catalog for Pump for beer, wine, alcohol CPS36S, 1.5 kW, AISI 304, 220V/50Hz, 2900 rpm
Overview
CPS series pumps are single-stage centrifugal pumps suitable for both domestic and industrial applications for pumping clean liquids without solids in agriculture, in technological processes for pumping liquids with weak solutions of acids and alkalis, for wine, beer, milk, for use in heating systems, water supply and for pumping non-aggressive chemicals. Hydraulic characteristics consist in higher head and lower performance. Operating conditions: liquid temperature up to 60°C, ambient temperature up to 40°, total suction height up to 9 m.

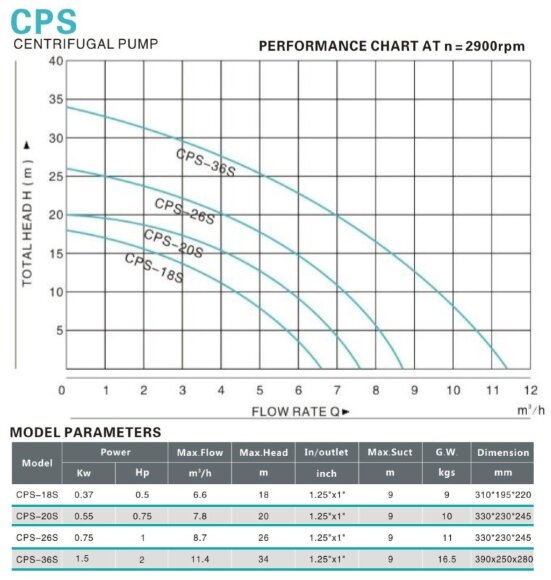

Characteristics
| Producer | BTS Engineering |
| Pump capacity, m3/h | 11.4 |
| Feed height, m | 34 |
| Power capacity, kW | 1,5 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | 1 1/4" |
| Output pipe diameter | 1" |
| Rate of turn, rpm | 2 900 |
| Protection | IP44 |
| Power supply | 1х220 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 11.4 |
| Max.temperature, C | 60 |
| Suction capacity (NPSH), m | 9 |
| Dimensions, mm | 390x250x280 |
| Seal | Mechanical Seal, CER/CAR |
| Max. head, m | 34 |
| Housing material | AISI 304 stainless steel |
| Serial number of the pump | CPS |
| Country of Origin | China |
| PumpType | console |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Application | wine, water supply, water, air conditioning, milk, irrigation, heating, beer, glaze |
| Gross weight, kg | 16.5 |
