The pneumatic diaphragm pumps BOXER 503 Plastic PVDF
Also buy with this product
Documentation
Download instructions, catalog for The pneumatic diaphragm pumps BOXER 503 Plastic PVDF
Overview
Diaphragm pump BOXER 503
Key features of the chemical pump 503 BOXER
- High pump capacity up to 900 l / min;
- Samozakachivanie liquid to 5 m;
- Gravity mode;
- Rapid regulation while maintaining a high pressure;
- The possibility of establishing a suspension;
- Adjustable blowing and head;
- Mnogopatrubnye tube bends;
- Can run dry without any problems;
- No electrical connections;
- Easily replaceable parts;
- Easy maintenance;
- Version Conduct, ATEX 2 / 2GD c IIB T 135 ° C can be supplied.
Characteristics
| Producer | DEBEM |
| Pump capacity, cu.m/hour | 54 |
| Feed height, m | 70 |
| Material | PVDF |

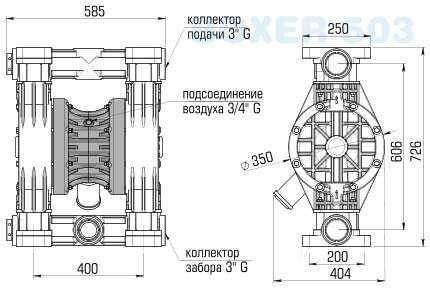

| Input pipe diameter | 3" |
| Output pipe diameter | 3" |
| Max.flow rate, m3/h | 54 |
| Model | BOXER 503 |
| Max.temperature, C | 95 |
| Pneumatic circuit connection, inch, f | 3/4" |
| Max.viscosity, cPs | 50 000 |
| Max.air pressure, bar | 7 |
| Max.diameter of solid inclusions, mm | 10 |
| Flow rate, l/min | 900 |
| Max.dry suction head, m | 5 |
| Max. head, m | 70 |
| Material of flow channel | PVDF |
| Diaphragm material at air side | SANTOPRENE |
| Diaphragm material at water side | PTFE |
| Material of ball valves | PTFE |
| Material of O-ring | PTFE |
| Material of valve seat | PVDF |
| Serial number of the pump | BOXER |
| Country of Origin | Italy |
| PumpType | membrane pneumatic |
| Drive Type | pneumatic |
| Availability of spare parts | Yes |
| Application | nitric acid, ammonia, butane, hydrogen, viscous liquids, clays, ash, kaolin suspension, urea, carbonate, paints, varnish, saturated amine, oleum, peroxide, sulfur, reverse osmosis systems, alcohol, acetic acid, phenol, formalin, phosphates, phosphoric acid, slag, slip, alkalis, ethylene, ethers |
| Analogue for | AGRAL DDE-030, AGRAL DDE-100, AGRAL DDE-160, AGRAL DDE-300, AGRAL DDE-60, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, AquaViva, Astralpool, Debem BOXER, Debem FOODBOXER, Debem SANIBOXER, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, DEPA М, DEPA РМ (Р), DOSITEC, Duotek AF Zone 2 Atex, DUOTEK FOOD, DUOTEK SANI, Emec, FWT, Graco Husky, Grundfos, Injecta, Jesco Pump, MILTON ROY, Milwaukee, PRODOSE, ProMinent, Seko, Sera, WILDEN, YAMADA NDP |
| Weight, kg | 67 |
