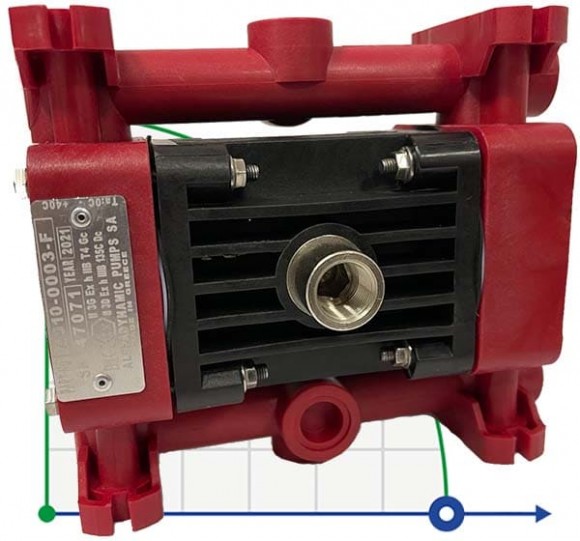

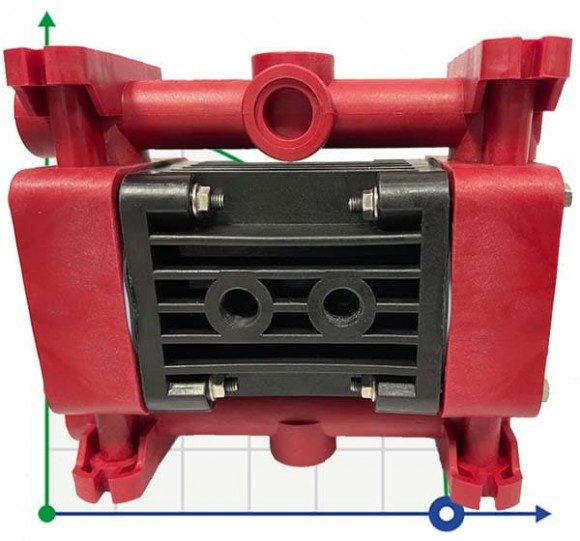

RUBY 010P-P-NTPT-F pneumatic diaphragm pump
Also buy with this product
Documentation
Download instructions, catalog for RUBY 010P-P-NTPT-F pneumatic diaphragm pump
Overview
Benefits of Ruby Pumps:
- economical air consumption, eco-design;
- a high degree of performance;
- optimum performance;
- High efficiency of the pressure / capacity;
- does not freeze;
- New design of the air valve is fully controlled by the passage of air;
- ease of disassembly and reassembly;
- progressive membrane technology;
- new generation of diaphragm with an inner outer piston;
- composite membrane PTFE + EPDM. It combines the highest resistance to aggressive media Teflon and EPDM elasticity. Operating temperature from -10 ° C to + 130 ° C;
- combined with a modified PTFE membrane layer, calculated on 100 million cycles are ideal for abrasive fluids and for operation under conditions of negative temperatures;.

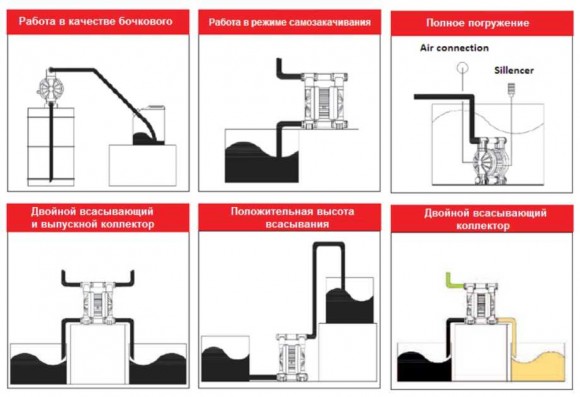

- Option Twin Manifold (two suction and two delivery);
- excellent performance and value for money;
- ideal for abrasive, viscous and shear sensitive media;
- Automatic suction;
- a full immersion in the pumped medium (on request);
- pumping viscous liquids;
- ease of maintenance and replacement parts;
- slight change ORIENTAL supply port (reverse collector).
Characteristics
| Producer | AlphaDynamic |
| Pump capacity, cu.m/hour | 1.32 |
| Feed height, m | 70 |
| Material | PP |
| Input pipe diameter | 3/8" |
| Output pipe diameter | 3/8" |
| Explosion protection | Yes |
| Max.flow rate, m3/h | 1.32 |
| Model | RUBY 010 |
| Diameter of the pneumatic mainline | 3/8" |
| Max.temperature, C | 60 |
| Dry suction height, m | 4 |
| Max.air pressure, bar | 7 |
| Max.diameter of solid inclusions, mm | 0,5 |
| Flow rate, l/min | 22 |

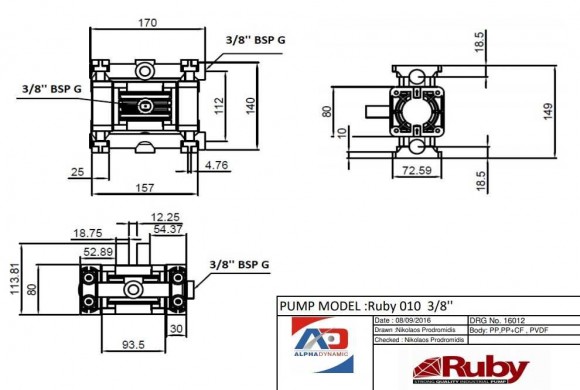

| Dimensions, mm | 170x114x149 |
| Max. head, m | 70 |
| Housing material | PP |
| Diaphragm material at water side | PTFE+back up (NBR) |
| Material of ball valves | PTFE |
| Material of valve seat | PP |
| Serial number of the pump | RUBY |
| Country of Origin | Greece |
| PumpType | membrane pneumatic |
| Drive Type | pneumatic |
| Availability of spare parts | Yes |
| Warranty, months | 12 |
| Application | nitric acid, ammonia, butane, hydrogen, viscous liquids, clays, ash, kaolin suspension, urea, carbonate, paints, varnish, saturated amine, oleum, peroxide, sulfur, reverse osmosis systems, alcohol, acetic acid, phenol, formalin, phosphates, phosphoric acid, slag, slip, alkalis, ethylene, ethers |
| Analogue for | AGRAL DDE-030, AGRAL DDE-100, AGRAL DDE-160, AGRAL DDE-300, AGRAL DDE-60, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, AquaViva, Astralpool, Debem BOXER, Debem FOODBOXER, Debem SANIBOXER, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, DEPA М, DEPA РМ (Р), DOSITEC, Duotek AF Zone 2 Atex, DUOTEK FOOD, DUOTEK SANI, Emec, FWT, Graco Husky, Grundfos, Injecta, Jesco Pump, MILTON ROY, Milwaukee, PRODOSE, ProMinent, Seko, Sera, WILDEN, YAMADA NDP |
| Weight, kg | 1,2 |
