BSC 80-210A/B, (3000) Double Suction Split Case Pump
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for BSC 80-210A/B, (3000) Double Suction Split Case Pump
Overview

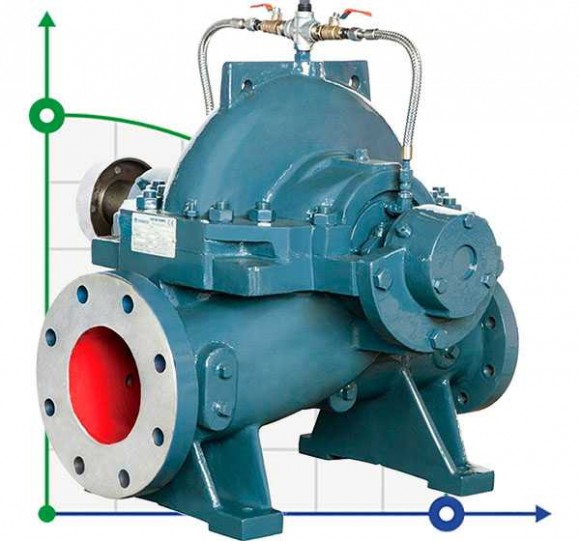

Double suction split case pump BSC
DESCRIPTION:
- Axially split volute pump casing design
- Pump case with anti-corrosive coating HT250
- Double-entry radial impeller in AISI 304 or HT250
- Shaft protecting sleeves in the seal area
- Mechanical seal and gland packing are both available
- Grease-packed rolling element bearings sealed for life
- Reliable complete with motor or diesel for fire fighting etc.
USING LIMITS:
- Liquid temperature between -10℃ and +120℃
- Ambient temperature between 0℃ and +50℃
- Max. working pressure 25 bar/Continuous S1
Characteristics
| Producer | BTS Engineering |
| Pump capacity, m3/h | 164 |
| Feed height, m | 55 |
| Power capacity, kW | 15, 18,5, 22, 30, 37 |
| Material | cast iron |
| Input pipe diameter | DN125 |
| Output pipe diameter | DN80 |
| Rate of turn, rpm | 3 000 |
| Power supply | 3х380 V, 50 Hz |
| Model | BSC 80-210A/B |
| Nom.flow rate, m3/h | 164 |
| Dimensions, mm | 600x715x455 |
| Nom.head, m | 55 |
| Impeller material | cast iron |
| Serial number of the pump | BSC |
| Country of Origin | China |
| PumpType | two-way entrance |
| Drive Type | electric |
| Type of configuration | without engine |
| Warranty, months | 12 |
| Weight, kg | 185 |
| Transport packing volume, cbm | 0,279 |
