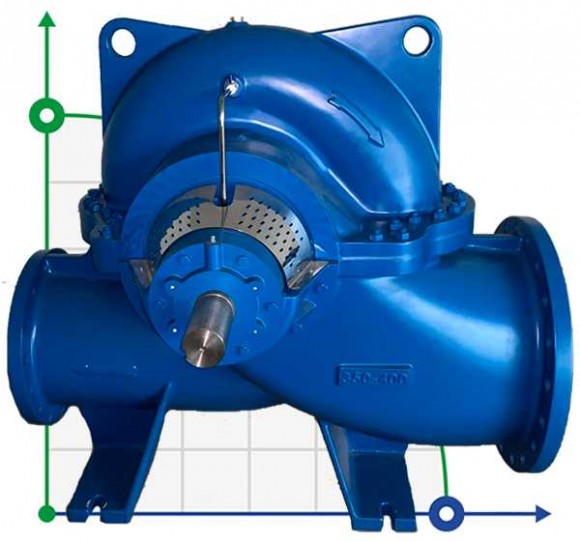

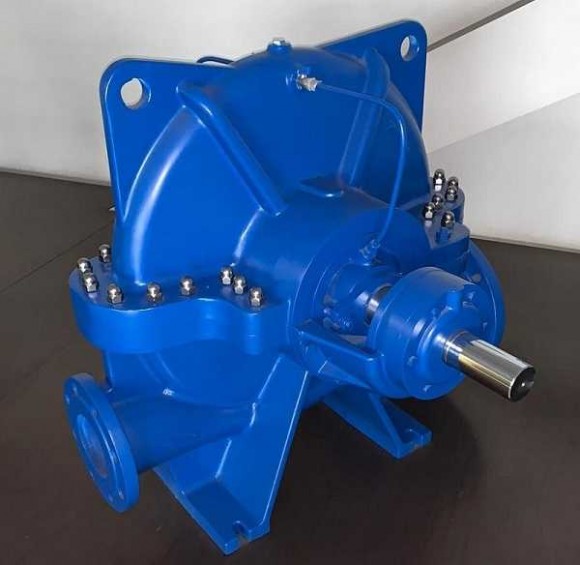

BSCE 125-315(3000) - Double Suction Split Case Pump Without Engine
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for BSCE 125-315(3000) - Double Suction Split Case Pump Without Engine
Overview
Split Case Centrifugal Pumps BCSE
- Suction and discharge flanges are on the same axis at the bottom casing.
- Split case design permits easy disassembly of the rotor group for maintenance or repair without distorting pump alignment and suction and discharge piping.

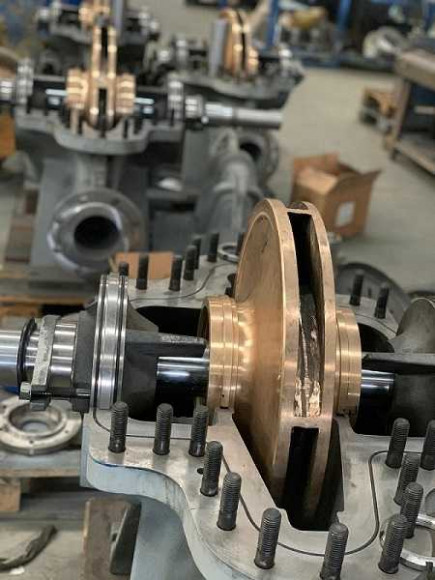

- Impeller is double suction.
- This feature increases pump suction performance in addition it provides the balance of hydraulic axial forces.
- Flanges are conforming to ISO 7005-2 / PN 16 or PN 25.
- All impellers are balanced statically and dynamically according to ISO 1940 class 6.3.
- Sealing is provided by gland packing, also it can be mechanical seal according to customer request.
Characteristics
| Producer | ERDURO |
| Pump capacity, m3/h | 790 |
| Feed height, m | 144 |
| Power capacity, kW | 185, 200, 250, 315 |
| Material | cast iron |
| Input pipe diameter | DN200 |
| Output pipe diameter | DN125 |
| Rate of turn, rpm | 3 000 |
| Max.flow rate, m3/h | 790 |
| Model | BSCE 125-315 |
| Dimensions, mm | 975x790x680 |
| Max. head, m | 144 |
| Serial number of the pump | BSCE |
| Country of Origin | Turkey |
| PumpType | two-way entrance |
| Drive Type | electric |
| Type of configuration | without engine |
| Warranty, months | 12 |
| Weight, kg | 380 |
