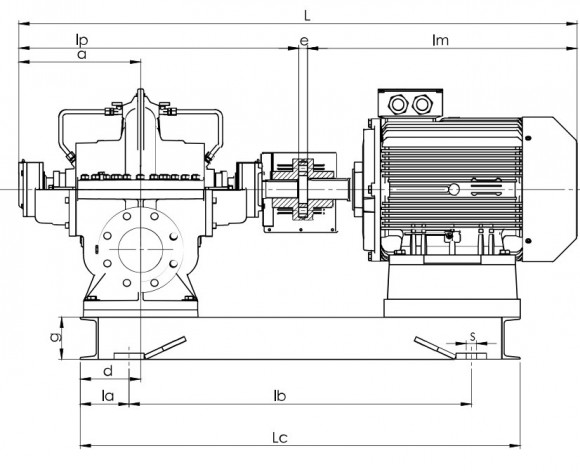

BSCE 200-430 (1500) - the pump unit of a bilateral entrance, 185 kW
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for BSCE 200-430 (1500) - the pump unit of a bilateral entrance, 185 kW
Overview
Centrifugal pumps of a bilateral entrance of the BSCE series.
Application: in water supply systems, treatment plants, pressure boosting plants, fire extinguishing installations, irrigation, for water circulation in air-conditioning systems, agriculture.
Peculiarities:
• Suction and discharge flanges are on the same axis at the bottom of the body.
• Split housing design allows easy dismantling of the rotor group for maintenance or repair without disturbing the alignment of the pump and suction and discharge pipelines.
• Double suction impeller.
• This feature increases the suction capacity of the pump and also balances the hydraulic axial forces.
• Flanges conform to ISO 7005-2 / PN 16 or PN 25.
• All impellers are statically and dynamically balanced according to class 6.3 ISO 1940.
• Consolidation is carried out by omental stuffing, at the request of the customer can be mechanical.
Characteristics
| Producer | ERDURO |
| Pump capacity, m3/h | 850 |
| Feed height, m | 54 |
| Power capacity, kW | 185 |
| Input pipe diameter | DN250 |
| Output pipe diameter | DN200 |
| Rate of turn, rpm | 1 500 |
| Explosion protection | No |
| Max.flow rate, m3/h | 1100 |
| Max.temperature, C | 110 |
| Impeller diameter, mm | 426 |
| Nom.flow rate, m3/h | 850 |
| Nom.head, m | 54 |
| Max. head, m | 67 |
| Housing material | Сast iron |
| Country of Origin | Turkey |
| PumpType | two-way entrance |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Weight, kg | 1740 |
