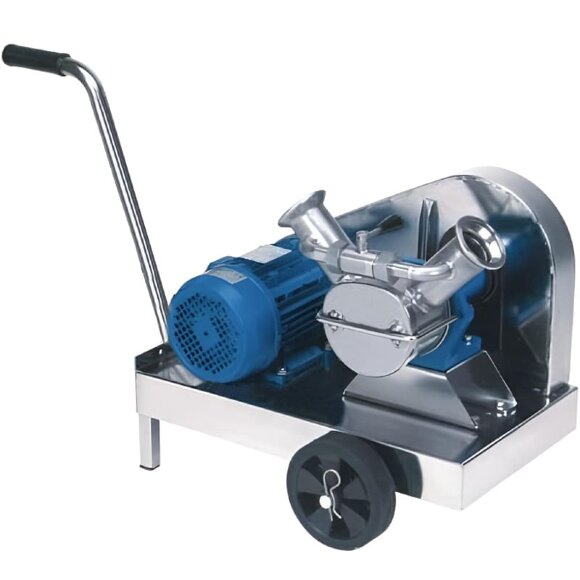

- Impeller pump for pumping wine, must LIVERANI GR MAJOR 60 +BY-PASS NR MF 1.5 kW, 300 rpm, 220V belt-driven with trolley
Impeller pump for pumping wine, must LIVERANI GR MAJOR 60 +BY-PASS NR MF 1.5 kW, 300 rpm, 220V belt-driven with trolley
Also buy with this product
1042539
Pre-order only
Documentation
Download instructions, catalog for Impeller pump for pumping wine, must LIVERANI GR MAJOR 60 +BY-PASS NR MF 1.5 kW, 300 rpm, 220V belt-driven with trolley
Overview

Stainless steel flexible impeller pumps are suitable for pumping delicate, fragile and viscous liquids, as well as liquids with suspended solids. The pumps are widely used for pumping food products, such as: beer, fruit pulp and juice, honey, liquid sugar, syrups, glucose, milk, melted butter, yogurt, liquid eggs, oil, tomato pulp and juice, brine, etc. In winemaking for pumping wine, must, grape must, grapes without stems. Impeller pumps are also widely used in the chemical industry for pumping starch, water-based glue, emulsions, glycerin, wax, detergents, rubber latex, photo processing fluids, polyelectrolyte, paint, ink, etc. In the production of cosmetics for pumping liquid soap, cleansing lotions, creams, shampoos, etc.
Characteristics
| Producer | LIVERANI |
| Pump capacity, m3/h | 7.2 |
| Feed height, m | 14 |
| Power capacity, kW | 1,5 |
| Material | AISI 304 stainless steel |
| Rate of turn, rpm | 300 |
| Power supply | 1х220 V, 50 Hz |
| Explosion protection | No |
| Max.flow rate, m3/h | 7.2 |
| Seal | Mechanical Seal, CER/CAR/NBR |
| Max. head, m | 14 |
| Connection | Garolla 60 |
| Housing material | AISI 304 stainless steel |
| Impeller material | NR |
| Serial number of the pump | GR MAJOR |
| Country of Origin | Italy |
| PumpType | flexible impeller |
| Drive Type | electric |
| Installation Type | horizontal |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Logistics data: |
