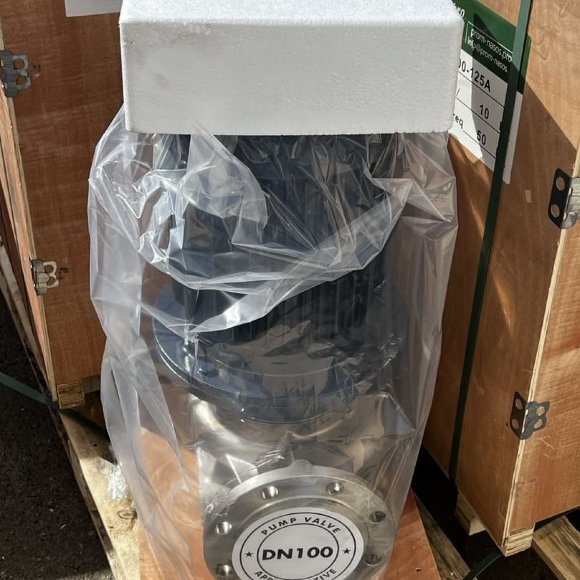

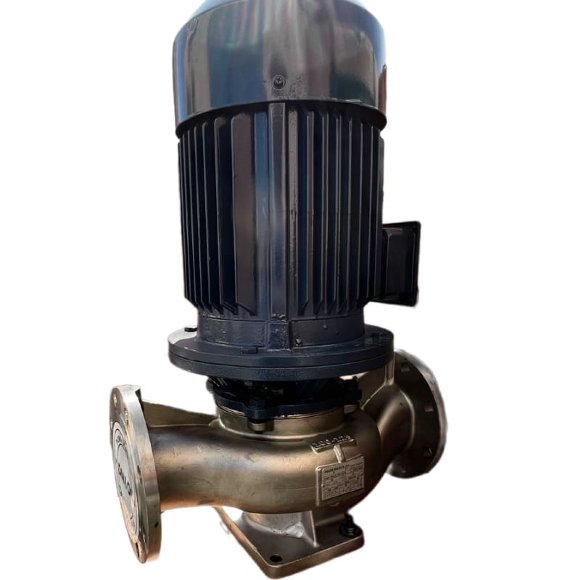

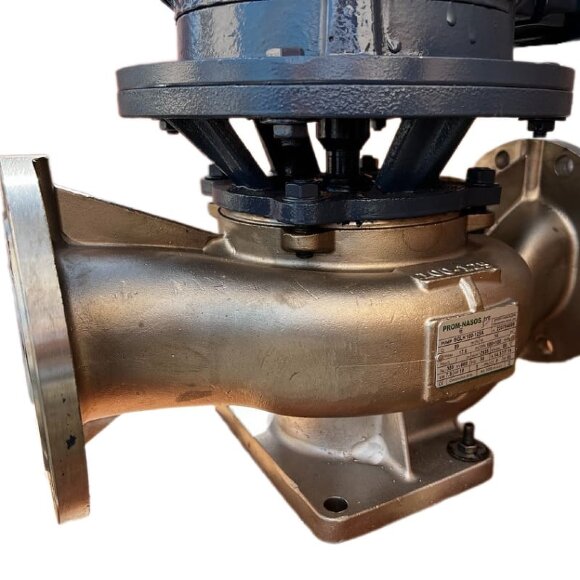

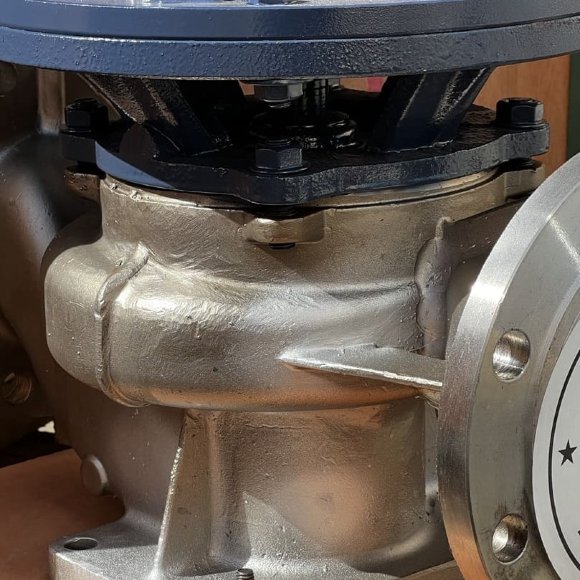

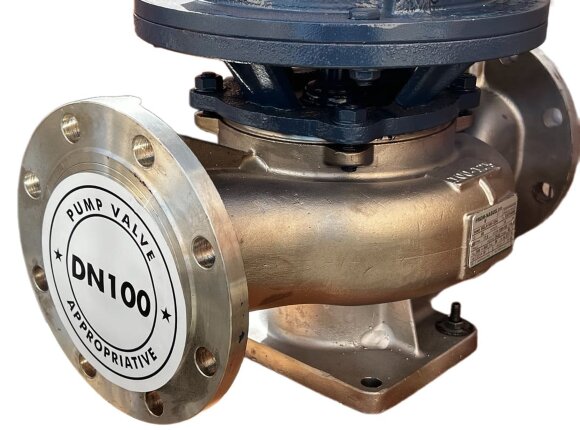

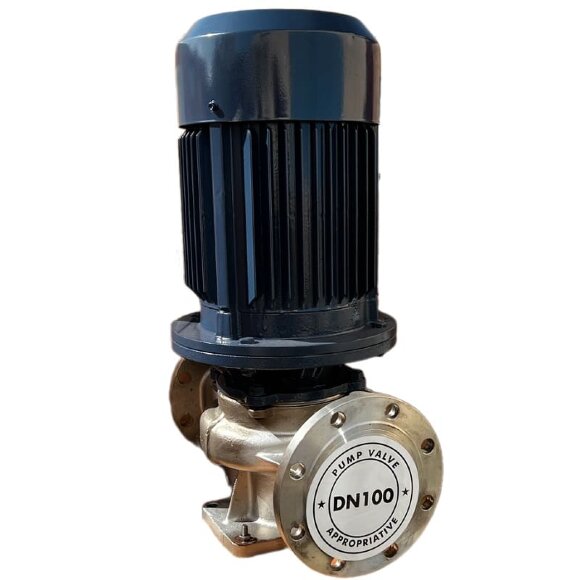

IHG BGLH 100-125A (89/16), 7,5kW, 2880 Stainless Steel Vertical Pump
Also buy with this product
Documentation
Download instructions, catalog for IHG BGLH 100-125A (89/16), 7,5kW, 2880 Stainless Steel Vertical Pump
Overview
Industrial pumps made of stainless steel AISI 304, (housing, shaft, impeller) are designed for pumping food products: juice, milk, dairy products, beer, alcohol, saline solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.

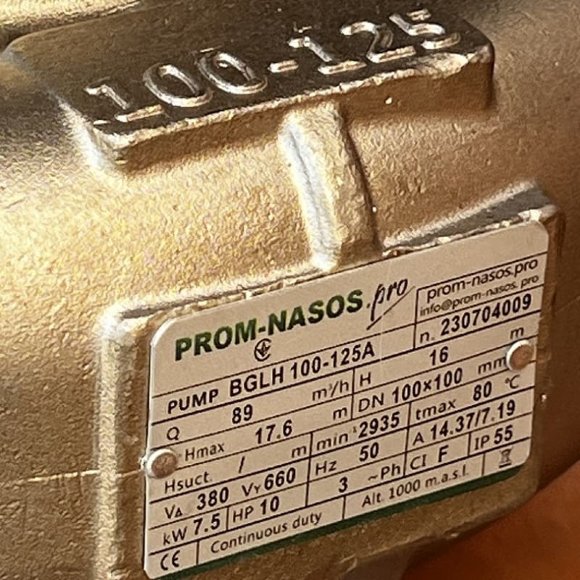

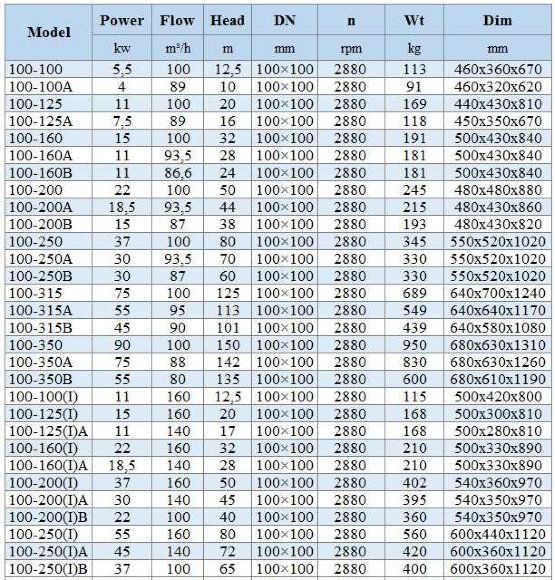

Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 89 |
| Feed height, m | 16 |
| Power capacity, kW | 7,5 |
| Material | AISI 304 stainless steel |
| Input pipe diameter | 100 |
| Output pipe diameter | 100 |
| Rate of turn, rpm | 2 880 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Max.temperature, C | 120 |
| Nom.flow rate, m3/h | 89 |
| Dimensions, mm | 450x350x670 |
| Nom.head, m | 16 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Material of flow channel | AISI 304 stainless steel |
| Serial number of the pump | BGLH |
| Country of Origin | China |
| PumpType | in-line |
| Drive Type | electric |
| Installation Type | vertical |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | abrasive fluids, bards, caustic, acid, coagulant, paints, oils, food, vulture washing, wort, alkalis |
| Weight, kg | 118 |
