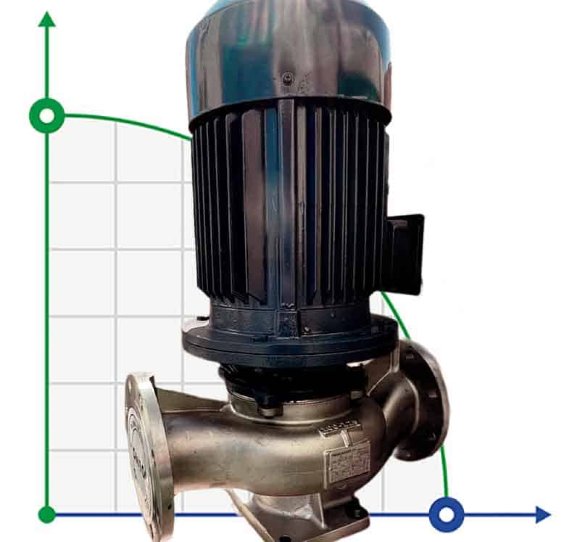

IHG BGLH 65-200B (21,8/38), 5,5kW, 2880 Stainless Steel Vertical Pump
Also buy with this product
Documentation
Download instructions, catalog for IHG BGLH 65-200B (21,8/38), 5,5kW, 2880 Stainless Steel Vertical Pump
Overview
Industrial pumps made of stainless steel AISI 304, (housing, shaft, impeller) are designed for pumping food products: juice, milk, dairy products, beer, alcohol, saline solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.
Characteristics
Producer | BTS Engineering |
Pump capacity, cu.m/hour | 21.8 |
Feed height, m | 38 |
Material | AISI 304 |
Serial number of the pump | BGLH |
Country of Origin | China |
Input pipe diameter | 65 |
Output pipe diameter | 65 |
Power capacity, kW | 5,5 |
Rate of turn, rpm | 2 880 |
Protection | IP55 |
Power supply | 3х380 V, 50 Hz |
Explosion protection | No |
PumpType | in-line |
Drive Type | electric |
Installation Type | vertical |
Seal | Mechanical Seal, Carbon-SiC-NBR |
Nom.head, m | 38 |
Dimensions, mm | 380x350x630 |
Nom.flow rate, m3/h | 21.8 |
Max.temperature, C | 120 |
Weight, kg | 100 |
Material of flow channel | AISI 304 |
Warranty, months | 12 |
Application | abrasive fluids, bards, caustic, acid, coagulant, paints, oils, food, vulture washing, wort, alkalis |
Length of transport packing, cm | 48 |
Width of transport packing, cm | 45 |
Height of transport packing, cm | 73 |
