BT 50-220/1,1 pump in-line
Also buy with this product
Documentation
Download instructions, catalog for BT 50-220/1,1 pump in-line
Overview

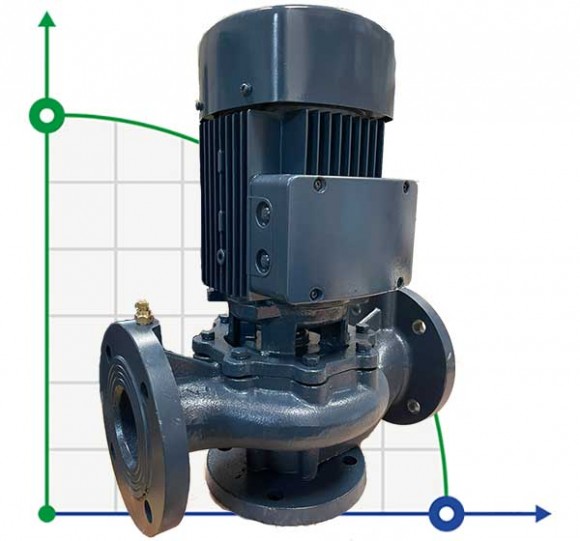

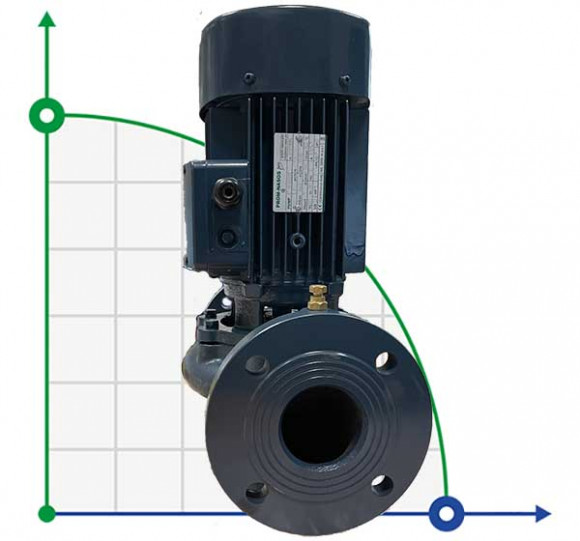

PT Vertical Inline Pump
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The vertical inline pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

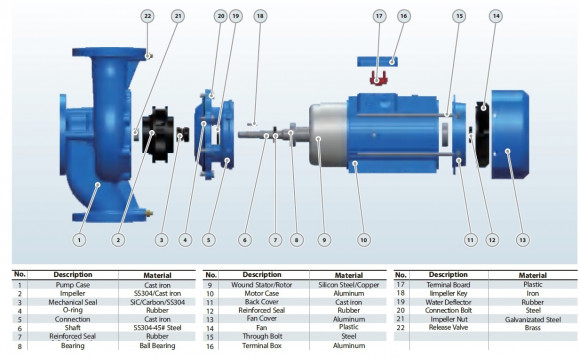

TECHNICAL DESCRIPTION:
- New vertical inline pump
- Original design by PURITY (patented)
- Both square motor & round motor available
- YE3 high efficient motor, with protection IP55 class F

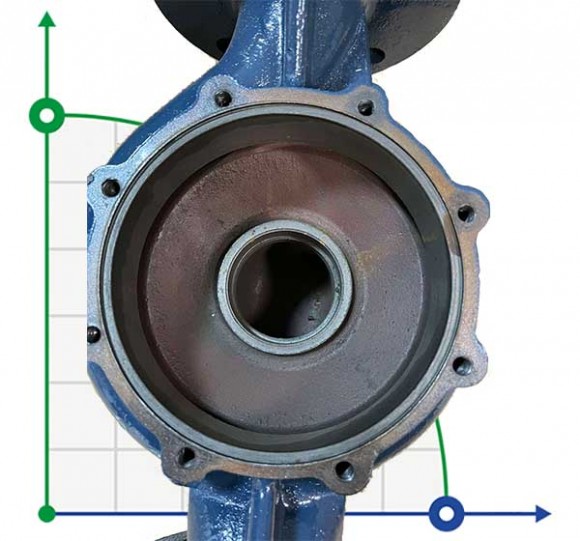

- Pump case with anti-corrosive coating
- Impeller in stainless steel AISI 304 or cast iron
- Shaft in stainless steel AISI 304 or galvanized iron
- Galvanized counter flange with bolts, nuts and gaskets
- Quality NSK bearing, wear resistance mechanical seal
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 27 |
| Feed height, m | 22 |
| Power capacity, kW | 1,1 |
| Material | cast iron |
| Input pipe diameter | DN50 |
| Output pipe diameter | DN50 |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Power supply | 3х380 V, 50 Hz |
| Max.flow rate, m3/h | 27 |
| Max.temperature, C | 120 |

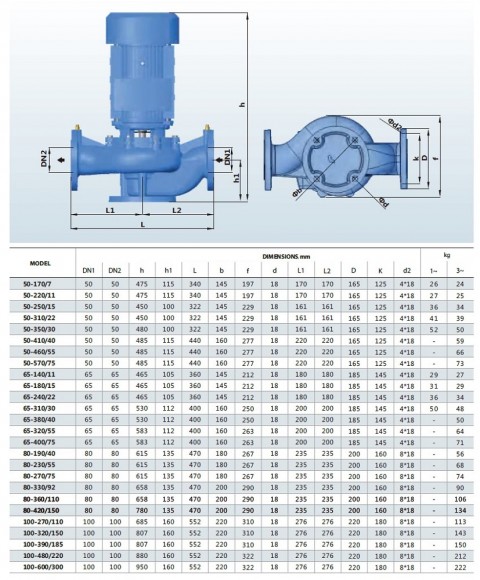

| Dimensions, mm | 510Х400Х300 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Max. head, m | 22 |
| Impeller material | AISI 304 stainless steel |
| Serial number of the pump | BT |
| Country of Origin | China |
| PumpType | in-line |
| Drive Type | electric |
| Installation Type | vertical |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | water supply, water, GWS, glycol, hot water, hot water, cooling tower, boiler, ice water, water recycling, heating, cooling, increasing pressure, water supply, glaze, air conditioning systems, the drying chamber, drying, coolant, circulation, ethylene glycol |
| Analogue for | KOLMEKS |
| Weight, kg | 34 |
| Gross weight, kg | 39 |
| Height of transport volume, cbm | 0,045 |
