Circulation pump in-line WILO IPL 65/155-5,5/2
Also buy with this product
Overview

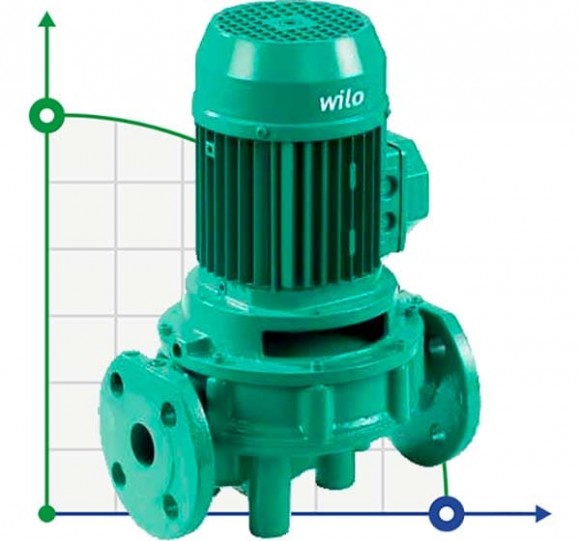

The WILO IPL circulation pump is a vertical single-stage IN-LINE pump. The pump is designed for pumping water in municipal, industrial heating systems, in multi-storey buildings, stationary boiler houses. Application: circulation pump, in-line pump, water pump, network pump, pressure boosting pump, circulation pump, heating pump, drying chamber pump, circulating water pump, ice water pump, cooling tower pump, irrigation pump, pressure boosting pump, drying pump. The design of the pump allows them to be mounted on a foundation support or directly on the pipeline. The warranty is 2 years. Warranty and post-warranty service. Official service center. Spare parts.
Characteristics
| Producer | Wilo |
| Pump capacity, cu.m/hour | 62 |
| Feed height, m | 27 |
| Power capacity, kW | 5,5 |
| Input pipe diameter | DN65 |
| Rate of turn, rpm | 2 900 |
| Power supply | 3х380 V, 50 Hz |
| Max.flow rate, m3/h | 62 |
| Max.temperature, C | 120 |
| Max. head, m | 27 |
| Serial number of the pump | IPL |
| Country of Origin | Germany |
| PumpType | in-line |
| Drive Type | electric |
| Installation Type | vertical |
| Type of configuration | with engine |
| Application | water supply, water, GWS, glycol, hot water, hot water, cooling tower, boiler, ice water, water recycling, heating, cooling, increasing pressure, water supply, glaze, air conditioning systems, the drying chamber, drying, coolant, circulation, ethylene glycol |
