ProducerBTS Engineering
Pump capacity, cu.m/hour143
Feed height, m10
MaterialAISI 201
Serial number of the pumpIHG
All specifications
Ukraine: Pre-order onlyPoland: Pre-order onlyGermany: Pre-order only
Vendor code: 1017416
Specify the price and terms of delivery with the manager

Estimated delivery date: 23.05.2024

$2,520.11netto
-+Buy

Documentation

Download instructions, catalog for IHG 125-100A Centrifugal pump

Overview

BTS Engineering

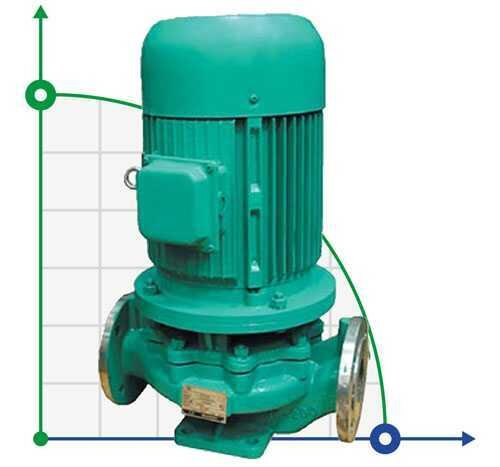

IHG Series dry motor pumps are vertical in-line single stage centrifugal chemical pumps designed for pumping of media in oil, chemical, metal, electric power, paper as well as healthcare industries. Temperature of the inlet media ranges from -20 оС to +120 оС in standard design. Main pump body details and impeller are made of high quality stainless steel resistant to aggressive media. IHG Series pumps are available in ATEX design

Characteristics

ProducerBTS Engineering
Pump capacity, cu.m/hour143
Feed height, m10
MaterialAISI 201
Serial number of the pumpIHG
Country of OriginChina
Input pipe diameterDN125
Output pipe diameterDN125
Power supply3х380 V, 50 Hz
Explosion protectionNo
PumpTypein-line
Drive Typeelectric
Installation Typevertical
Nom.head, m10
Nom.pressure, Mpa1,6
Nom.flow rate, m3/h143
Max.temperature, C120
Material of flow channelAISI 201
Availability of spare partsyes
Warranty, months12
Applicationabrasive fluids, bards, caustic, acid, coagulant, paints, oils, food, vulture washing, wort, alkalis

Categories:Inline pumpsCentrifugal pumpsPumps for stillage, mashPermeate PumpWood drying (circulation pumps)IHG, BGLH, BGWH stainless steel dry rotor pumps
