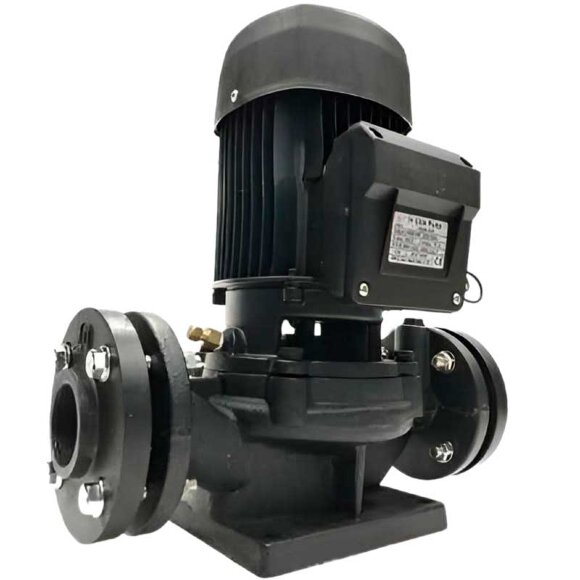

JL 50 Centrifugal pump
Also buy with this product
Documentation
Download instructions, catalog for JL 50 Centrifugal pump
Overview
Flange-type centrifugal pumps are applied in sealed and open vented heating systems with forced coolant circulation.
Medium doesn’t come in contact with the pump motor in comparison to the pumps with wet rotor. Inlet and discharge pipes of JL centrifugal pumps are parallel to each other with the similar nominal bores. The JL pumps are equipped with standard flange-type electric air-cooled motors.
Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 30 |
| Feed height, m | 17 |
| Power capacity, kW | 1,5 |
| Material | cast iron |
| Input pipe diameter | DN50 |
| Output pipe diameter | DN50 |
| Power supply | 1х220 V, 50 Hz |
| Nom.pressure, Mpa | 1,6 |
| Max.flow rate, m3/h | 30 |
| Max.temperature, C | 120 |
| Net weight,kg | 29 |
| Nom.flow rate, m3/h | 24 |
| Nom.head, m | 14 |
| Max. head, m | 17 |
| Material of flow channel | cast iron |
| Serial number of the pump | JL |
| Country of Origin | China |
| PumpType | in-line |
| Drive Type | electric |
| Installation Type | vertical |
| Availability of spare parts | Yes |
| Warranty, months | 12 |
| Application | water supply, water, GWS, glycol, hot water, hot water, cooling tower, boiler, ice water, water recycling, heating, cooling, increasing pressure, water supply, glaze, air conditioning systems, the drying chamber, drying, coolant, circulation, ethylene glycol |
| Analogue for | CALPEDA NC, CALPEDA NM, CALPEDA NR, DAB ALM, DAB ALP, DAB CM, DAB CM-G, DAB CP, DAB CP-G, DAB DCM, DAB DCM-G, DAB DCP, DAB DCP-G, DAB DKLM, DAB DKLP, DAB KLM, DAB KLP, EBARA EGO EASY, EBARA LPS, Grundfos UPS, KSB Calio, KSB Calio S, KSB Etaline, KSB Etaline-R, KSB Etanorm, PSPRUT 3VP, Speroni SCR, SPRUT 1V, SPRUT 3VP, SPRUT GPD, WILO CronoLine-IL-E, WILO TOP-S, WILO VeroLine-IPL |
| Weight, kg | 35 |
Categories:Inline pumpsCentrifugal pumpsWood drying (circulation pumps)Dry rotor pumpsJL Heating Circulation Pumps
