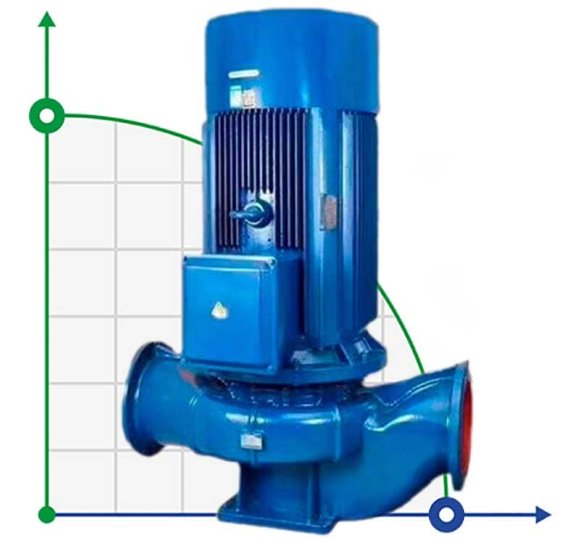

IRG TKG 25/160-1./52 (4/32), 1.5 kW, 2900 vertical centrifugal pump
Also buy with this product
Documentation
Download instructions, catalog for IRG TKG 25/160-1./52 (4/32), 1.5 kW, 2900 vertical centrifugal pump
Overview
Application of industrial pumps of the TKG series: heat supply, irrigation, cooling and circulation, in central heating and hot water supply systems, fire extinguishing systems, booster systems, systems for water preparation, irrigation, hot and cold water supply in heating, cooling and air conditioning systems, for power boilers thanks to the reliable design of the pump, pumping clean liquids that do not contain abrasive impurities and are not aggressive to the materials from which the pump is made. The pump is ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. If it is intended to pump a liquid whose density and/or viscosity differs from the same parameters of water, then due to the change in hydraulic power, it is necessary to take into account the power of the electric motor required in this case.
Characteristics
| Producer | BTS Engineering |
| Pump capacity, cu.m/hour | 4 |
| Feed height, m | 32 |
| Power capacity, kW | 1,5 |
| Material | cast iron |
| Input pipe diameter | 25 |
| Output pipe diameter | 25 |
| Rate of turn, rpm | 2 900 |
| Power supply | 3х380 V, 50 Hz |
| Explosion protection | No |
| Impeller diameter, mm | 160 |
| Suction capacity (NPSH), m | 2,3 |
| Nom.flow rate, m3/h | 4 |
| Nom.head, m | 32 |
| Material of flow channel | cast iron |
| Serial number of the pump | TKG |
| Country of Origin | China |
| PumpType | in-line |
| Drive Type | electric |
| Installation Type | vertical |
| Type of configuration | with engine |
| Warranty, months | 12 |
| Application | water supply, cooling tower, for systems of water supply, irrigation, extinguishing, irrigation systems |
| Weight, kg | 39 |
