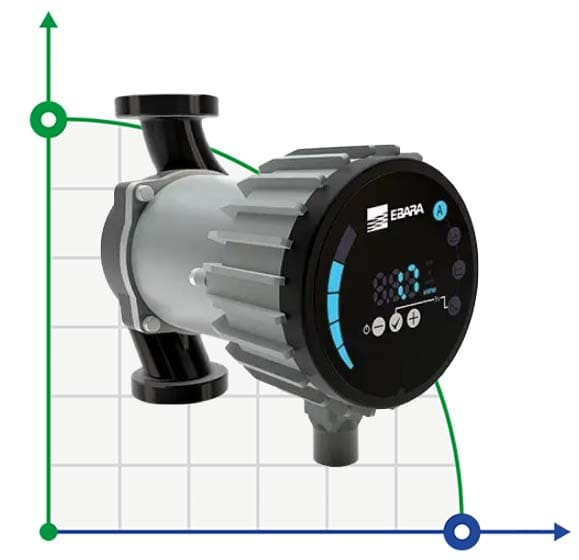

EBARA EGO EASY 40-100F circulation pump with electronic control
Also buy with this product
Overview
Ego Easy is a high-performance circulator with a wet rotor with a threaded or flanged connection, a permanent magnet motor and an integrated electronic controller. They are used for industrial and commercial heating and air conditioning systems.
Features: silent operation; replaces energy efficiency standards; double fulfillment is possible; automatic ventilation function; supplied with threaded or flanged connection; convenient user display; built-in frequency converter; the ability to choose one of four adjustment modes (automatic, constant speed, variable selectp, constant selectp); night mode
Characteristics
| Frequency control | Yes |
| Producer | Ebara |
| Pump capacity, m3/h | 10.5 |
| Feed height, m | 10 |
| Material | cast iron |
| Input pipe diameter | DN40 |
| Output pipe diameter | DN40 |
| Protection | IP44 |
| Power supply | 1х220 V, 50 Hz |
| Max.flow rate, m3/h | 10.5 |
| Max.temperature, C | 110 |
| Max. head, m | 10 |
| Serial number of the pump | Ego |
| Country of Origin | Italy |
| PumpType | with wet rotor |
| Drive Type | electric |
| Installation Type | vertical |
