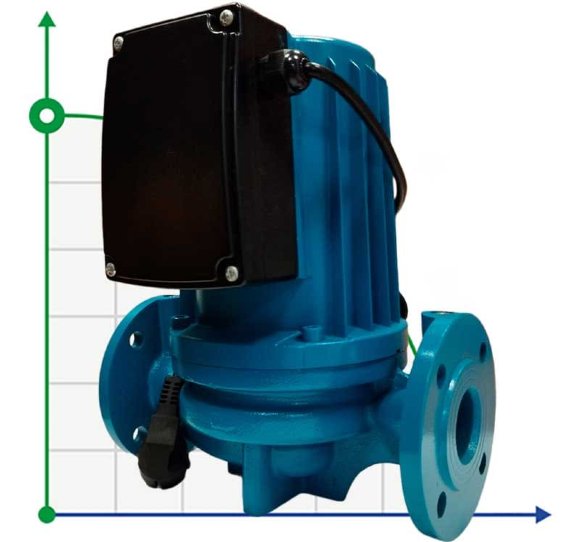

Circulation drying pump HGR1100-DN40, 220V with wet rotor
Also buy with this product
Documentation
Download instructions, catalog for Circulation drying pump HGR1100-DN40, 220V with wet rotor
Overview
EDWIN wet rotor circulation pumps of the HGR series are used for the heating system of urban residential buildings, summer cottages, country houses, are combined with industrial equipment, supply water in a cycle for cooling air conditioners, boilers and solar energy, for supplying hot water and keeping heat in the cycle. Operating conditions: maximum liquid temperature up to +110°С. Copper winding, built-in thermal protection.
Characteristics
| Frequency control | no |
| Producer | EDWIN |
| Pump capacity, m3/h | 23.1 |
| Feed height, m | 20 |
| Power capacity, kW | 1,1 |
| Input pipe diameter | DN40 |
| Output pipe diameter | DN40 |
| Power supply | 1х220 V, 50 Hz |
| Max.flow rate, m3/h | 23.1 |
| Max.medium temperature, Celsius degree | 110 |
| Max. head, m | 20 |
| Impeller material | AISI stainless steel |
| Shaft material | Steel |
| Bearing Material | Steel |
| Serial number of the pump | HGR |
| Country of Origin | China |
| PumpType | with wet rotor |
| Drive Type | electric |
| Weight, kg | 16,8 |
| Gross weight, kg | 17.4 |
